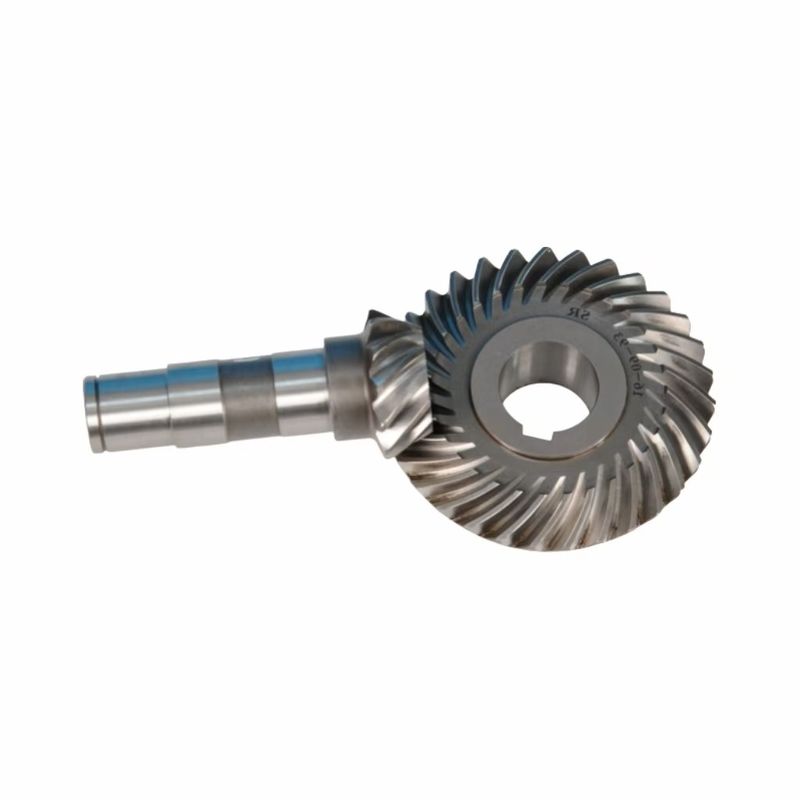

Hypoid Grinding Gear Hardened Finish For Four-Series Speed Reducer

Hypoid Grinding Gear Hardened Finish For Four-Series Speed Reducer

Dingsco's hypoid gears adopt a unique helical tooth design, with smooth tooth surfaces, and the axes of the main and driven gears do not intersect and there is an offset distance. This design allows for a larger contact area when the gear is engaged, resulting in a significantly higher load carrying capacity.

Specific structural features include;
1.Tooth surface shape: Hyperboloid curve design is adopted, and the tooth surface contact area is more evenly distributed along the tooth width and tooth height, effectively dispersing the load.
2.Helix angle difference: The helix angle of the driving wheel is greater than that of the driven wheel, which makes the driving wheel larger in diameter and higher in strength, and at the same time achieves smooth transmission through sliding friction.
3.Offset design: The driving axle can be offset up or down.

With its high load-bearing, low-noise and compact design, hypoid gears have become the core components of K series gear units, and have been extended to F series orthogonal shaft models. Its design blends materials science with precision manufacturing technology for a wide range of applications in heavy industry and automation. With the improvement of industry standards and the innovation of patented technology, hypoid gears continue to improve in terms of efficiency, reliability and adaptability, and have become one of the key solutions for modern transmission systems.

DINGSCO Precision Gear Solutions — Pioneering Force in Equipment Transmission

Core Advantages: Cutting-Edge Equipment × Digitalized Processes × Full-Cycle Services

As a leading precision gear manufacturer, DINGSCO specializes in customized production of micro high-precision spiral bevel gears and hypoid gears through our multiple CNC seven-axis five-linkage spiral bevel gear grinding/milling machines and Gleason spiral bevel cutter technology. With DIN 6 precision class (tooth profile error ≤ ±5μm), 95%+ transmission efficiency, and ultra-high reduction ratios, we deliver reliable transmission solutions for robotics, motor drives, new energy vehicles, and more.

Why Choose DINGSCO?
✅ High Precision: Achieving DIN 6 grade accuracy, leading the industry in controlling tooth profile errors.

✅ High Efficiency: With a single - stage reduction ratio of up to 300:1, and a transmission efficiency of over 95%.

✅ Durability: 40% lower lifecycle cost, <0.5% failure rate.
✅ Fast response: The digital process can shorten the delivery cycle to 20 working days.

Contact Us Soon for gear optimization proposals and 3D meshing simulations!
