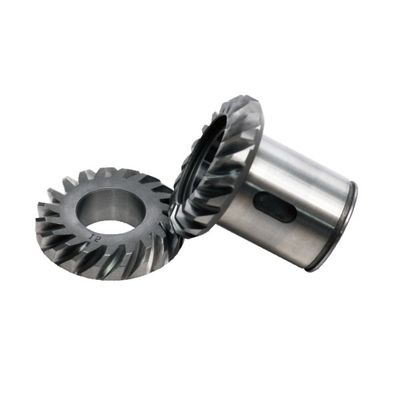

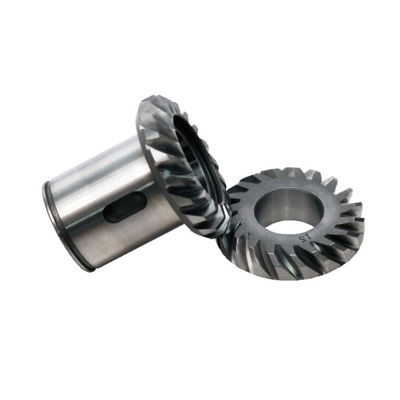

Customized Steel Spiral Bevel Pinion Gear with Gleason Type Tooth Profile for Machine Tools

Place of Origin	Changsha, China
Brand Name	SJ, DH
Certification	ISO9001

Product Details

Material:

Steel

Shape:

Spiral

Tooth Profile:

Gleason Type

Processing:

Grinding

Heat Treatment:

Carburizing,quenching, Carbonitriding, High-frequency, Quenching, Tempering Etc

Service:

Customized

Highlight:

8mm pinion gear

spiral bevel gear pinion

5mm pinion gear

Payment & Shipping Terms

Minimum Order Quantity

Negotiable

Price

Negotiable

Packaging Details

According to customer's requirement

Delivery Time

Sample order: 7 days

Payment Terms

T/T

Supply Ability

Negotiable

Product Description

Custom Spiral Bevel Pinion Gears for Machine Tool Applications

Our precision spiral bevel pinion gears are available in various module sizes including 2mm, 2.3mm, 5mm, and 8mm, specifically customized for machine tool components and industrial applications.

Spiral Bevel Gear Characteristics

Spiral bevel gears feature a conical design with exceptional transmission efficiency and stable transmission ratios. Key advantages include:

High arc overlap coefficient for superior load capacity
Smooth, stable transmission operation with minimal noise
Compact, space-saving design for efficient energy and material usage
Excellent wear resistance and extended service life
Reliable performance in demanding industrial environments

Why Choose Our Spiral Bevel Gears

30 Years of Expertise: Founded in 1994, we specialize in high-quality small module gears with international standards compliance
Technical Leadership: Our team includes doctoral researchers and members of the China Gear Standardization Technical Committee
Advanced Manufacturing: Complete digital closed-loop manufacturing system for spiral bevel gear R&D, design, strength verification, and precision production

Technical Specifications

Parameter	Specifications
Material	20CrMnTi, 20CrMo, 42CrMo, 45# Steel, and other alloys
Surface Finish	Bright
Gear Shape	Helical
Pressure Angle	20° standard (customizable options available)
Tooth Profile	Gleason Type
Accuracy Grade	ISO 6-7 Grade
Processing Method	Grinding
Module (M)	≤4
Heat Treatment	Carburizing, quenching, carbonitriding, high-frequency quenching, tempering
Application	Machine Tool Components

Advanced Manufacturing Capabilities

Our facility features multiple CNC 7-axis 5-linkage spiral bevel gear grinding and milling machines capable of processing high-reduction ratio hypoid and transverse cured tooth coupling components.

Quality Assurance & Testing

We utilize high-precision gear measurement centers to perform comprehensive quality checks including gear pitch accuracy detection, tooth profile error analysis, and inverse correction of tooth profile errors.

Professional Software Solutions

Our complete digital closed-loop manufacturing software suite enables comprehensive spiral bevel gear development including gear design, strength calculation, contact analysis, tool calculation, and tooth profile error reversal. Supported machining methods include five tools machining (fixed setting), G-plete of tapper, spiral format tilt (SFT) method, and hypoid format tilt (HFT) method of Cycloid equidep.
