Miter Gear crossed Axis Drive Grinding Cone For Industrial Sewing Machine

Miter Gear crossed Axis Drive Grinding Cone For Industrial Sewing Machine

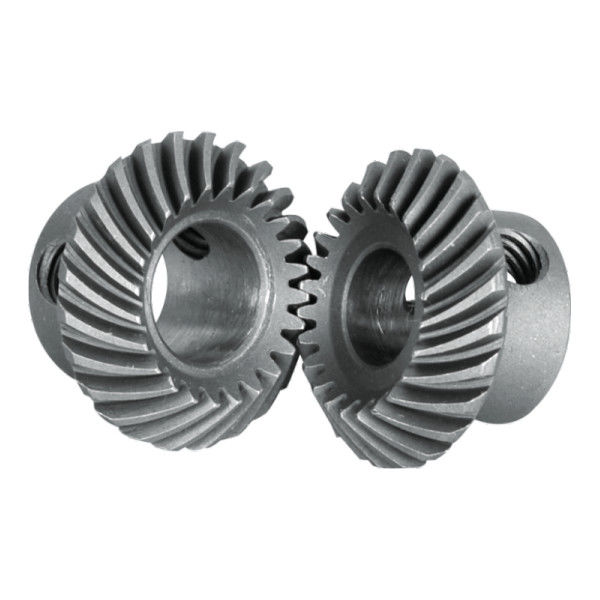

Miter gears (equal diameter bevel gears) intersecting axis drive is a special type of bevel gear transmission system.

• Axis intersection: The axes of the two gears intersect at a point in space, usually at a right angle (90°).
• Gear ratio 1:1: Both gears have the same number of teeth, but therefore the speed is equal, but the steering is reversed.
• Bevel gear geometric relationship: indexing cone angle 90°; The vertices of the pitch cone of the two gears coincide at the intersection of the axes, ensuring a pure rolling mesh.

The core value of Miter gears intersecting shaft transmission is to realize the constant velocity reverse movement between intersecting shafts, and its design needs to strictly match the shaft intersection angle and the indexing cone angle, and improve the bearing capacity through tooth shape optimization. Despite the demanding machining and assembly accuracy, it is irreplaceable in the fields of symmetrical drive and space-constrained drive, and is a classic solution for efficient power transmission in mechanical systems.

DINGSCO---Committed to crafting custom gears

1.Advanced equipment: We have a complete set of advanced equipment such as multiple seven-axis five-linkage CNC spiral bevel gear grinding machines and gear milling machines.

2.Software strength: We have a complete set of software to realize the digital closed-loop manufacturing of spiral bevel gears.

3.Processing methods: We adopt a variety of advanced processing methods, such as five tools machining(fixed setting) & G-plete of tapper , spiral format tilt(SFT) method & hypoid format tilt (HFT) method of Cycloid equidep.

4.Testing equipment: We use high-precision gear measurement center to detect and counter-correct various errors to ensure the high quality of products.
