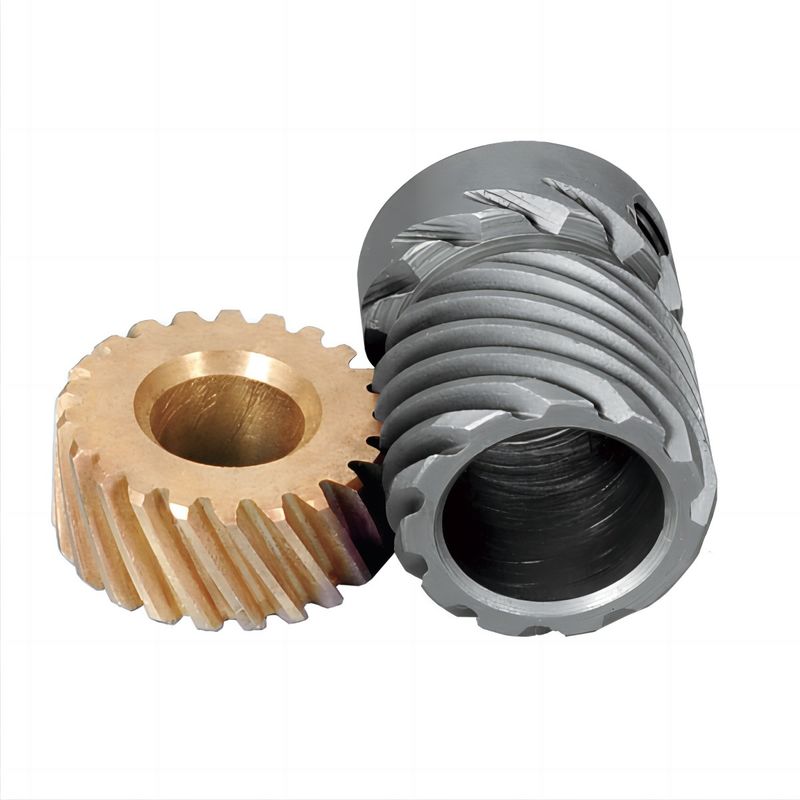

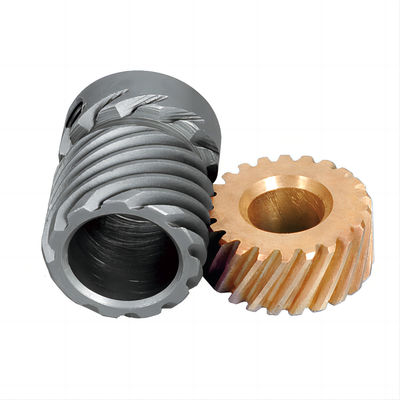

Zigzag Sewing Machine Gear Low Noise Small Module Gear 11/22 Teeth
What are the characteristics of zigzag sewing machine gear?
Cam Mechanism: Zigzag sewing machines typically employ a cam mechanism that controls the movement of the needle and the fabric feed. The cam is a specially shaped disc or plate that rotates and interacts with the machine's gears to produce different stitch patterns, including the zigzag stitch.
Gear Ratio: The gear ratio in zigzag sewing machines determines the speed and power transmission between the motor and the cam mechanism. Different gear ratios are used to achieve various stitch lengths and widths.
Adjustable Stitch Width: Zigzag sewing machines feature gears that allow for the adjustment of stitch width. By changing the position of the cam or adjusting the gear mechanism, users can modify the width of the zigzag stitch.
Why choose us?
1.Internationally, power transmission gear devices are developing in the direction of miniaturization, high speed, and standardization. We are experts dedicated to high-quality small module gears. Our factory was founded in 1994 and has 30 years of industry experience.
2.Our company currently has one doctorate (member of the China Gear Standardization Technical Committee) and one graduate student engaged in bevel gear research. We have a complete set of software for digital closed-loop manufacturing of spiral bevel gears, specializing in gear R&D, design, strength verification and high-precision gear manufacturing.
3.Our company has a complete set of advanced production equipment and testing equipment such as multiple CNC 7-axis 5-linkage spiral bevel gear grinding and gear milling machines. It has successively developed high-quality products for users such as high reduction ratio, high speed, heavy load, low noise, and low number of teeth, which can meet the high-quality gear needs of industries such as reducers, industrial robots, industrial sewing machines, and model aircraft.
| Zigzag Sewing Machine Gear Low Noise Small Module Gear 11/22 Teeth |
| Specification |
| Material |
20CrMnTi,42CrMo, 45# etc |
| Shape |
Bevel |
| Hardness |
Hardened |
| Surface |
Bright |
| Pressure Angle |
20°, also can be customized |
| Accuracy Grade |
ISO 6-7 Grade |
| Module (M) |
≤4 |
| Heat Treatment |
Carburizing, quenching, carbonitriding, high-frequency, quenching, tempering etc. |
| Processing |
Forging, hobbing, shaping, shaving, grinding etc. |
| Application |
Industrial Sewing Machine Gear
|
Advanced manufacturing equipment
DH has multiple CNC 7-axis 5-linkage spiral bevel gear grinding machines and gear milling machines that can process high-reduction ratio hypoid and transverse cured tooth coupling.
Advanced testing equipment
Utilize a high-precision gear measurement center to complete gear pitch accuracy detection, tooth profile error detection and inverse correction of tooth profile errors.
Professional software
Our factory has a complete set of software to realize digital closed-loop manufacturing of spiral bevel gears, Functions such as gear design, strength calculation, contact analysis, tool calculation, tooth profile error reversal, etc. can be realized. Machining methods include five tools machining(fixed setting) & G-plete of tapper , spiral format tilt(SFT) method & hypoid format tilt (HFT) method of Cycloid equidep, etc.
