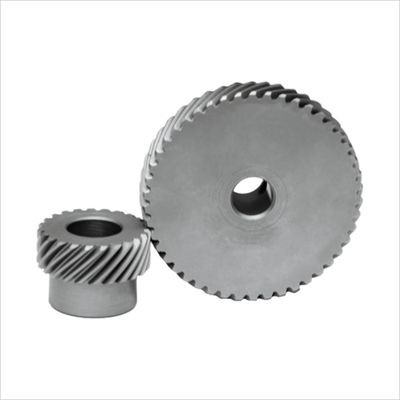

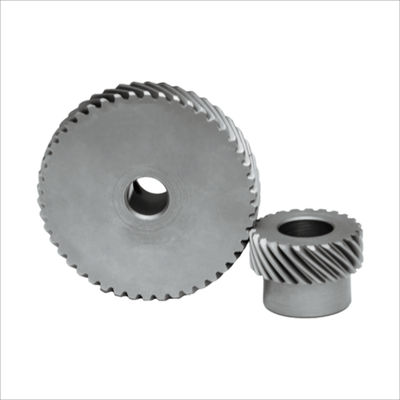

Extra-Thick Zigzag Sewing Machine Gear Cylindrical Gear Efficient Power Transmission
What are the characteristics of cylindrical gear?
Tooth Profile: Cylindrical gears have teeth that are cut in a cylindrical shape around the gear's circumference. The most common tooth profile for cylindrical gears is the involute profile, which provides smooth and efficient power transmission.
Module and Pitch: Cylindrical gears are specified by their module (metric) or pitch (imperial), which defines the size and spacing of the teeth. The module or pitch is crucial for ensuring proper gear meshing and compatibility with other gears in the system.
Pressure Angle: The pressure angle is the angle between the tangent to the gear tooth profile and the line representing the direction of the force between meshing gears. The most common pressure angle for cylindrical gears is 20 degrees (commonly known as the "standard" pressure angle).
Gear Ratio: The gear ratio of cylindrical gears is determined by the ratio of the number of teeth on the driving gear to the number of teeth on the driven gear. The gear ratio affects the speed and torque transmission between the gears.
Why choose us?
1.Internationally, power transmission gear devices are developing in the direction of miniaturization, high speed, and standardization. We are experts dedicated to high-quality small module gears. Our factory was founded in 1994 and has 30 years of industry experience.
2.Our company currently has one doctorate (member of the China Gear Standardization Technical Committee) and one graduate student engaged in bevel gear research. We have a complete set of software for digital closed-loop manufacturing of spiral bevel gears, specializing in gear R&D, design, strength verification and high-precision gear manufacturing.
3.Our company has a complete set of advanced production equipment and testing equipment such as multiple CNC 7-axis 5-linkage spiral bevel gear grinding and gear milling machines. It has successively developed high-quality products for users such as high reduction ratio, high speed, heavy load, low noise, and low number of teeth, which can meet the high-quality gear needs of industries such as reducers, industrial robots, industrial sewing machines, and model aircraft.
| Extra-Thick Zigzag Sewing Machine Gear Cylindrical Gear Efficient Power Transmission |
| Specification |
| Material |
20CrMnTi,42CrMo, 45# etc |
| Shape |
Cylindrical |
| Hardness |
Hardened |
| Surface |
Bright |
| Pressure Angle |
20°, also can be customized |
| Accuracy Grade |
ISO 6-7 Grade |
| Module (M) |
≤4 |
| Heat Treatment |
Carburizing, quenching, carbonitriding, high-frequency, quenching, tempering etc. |
| Processing |
Forging, hobbing, shaping, shaving, grinding etc |
| Application |
Industrial Sewing Machine Gear
|
Advanced manufacturing equipment
DH has multiple CNC 7-axis 5-linkage spiral bevel gear grinding machines and gear milling machines that can process high-reduction ratio hypoid and transverse cured tooth coupling.
Advanced testing equipment
Utilize a high-precision gear measurement center to complete gear pitch accuracy detection, tooth profile error detection and inverse correction of tooth profile errors.
Professional software
Our factory has a complete set of software to realize digital closed-loop manufacturing of spiral bevel gears, Functions such as gear design, strength calculation, contact analysis, tool calculation, tooth profile error reversal, etc. can be realized. Machining methods include five tools machining(fixed setting) & G-plete of tapper , spiral format tilt(SFT) method & hypoid format tilt (HFT) method of Cycloid equidep, etc.
