Precision Right-Angle Transmission Spiral Bevel Gear Set with Carburizing & Quenching and ISO 5-6 Accuracy Grade
  • Precision Right-Angle Transmission Spiral Bevel Gear Set with Carburizing & Quenching and ISO 5-6 Accuracy Grade
Precision Right-Angle Transmission Spiral Bevel Gear Set with Carburizing & Quenching and ISO 5-6 Accuracy Grade

Precision Right-Angle Transmission Spiral Bevel Gear Set with Carburizing & Quenching and ISO 5-6 Accuracy Grade

Place of Origin Changsha, China
Brand Name SJ, DH
Certification ISO 9001
Product Details
Application:
Micro Reducers, Automation Systems, And High-performance Machinery.
Gear Type:
Spiral Bevel Gear Pair
Material:
20CrMnTi, 17CrNiMo6, SCM420, Or Custom Alloy Steel
HS Code:
848340
Heat Treatment:
Carburizing & Quenching
Surface Hardness:
HRC58–62
Backlash:
≤ 6 Arcmin
Efficiency:
≥ 94%
Accuracy Grade:
ISO 5-6
Highlight:

Industrial Reducer Gear

,

Reducer Gear

,

Bevel Gear

Payment & Shipping Terms
Minimum Order Quantity
Negotiable
Price
Negotiable
Packaging Details
According to customers' requests
Delivery Time
(Sample order) 7 days
Payment Terms
T/T
Supply Ability
Negotiable
Product Description

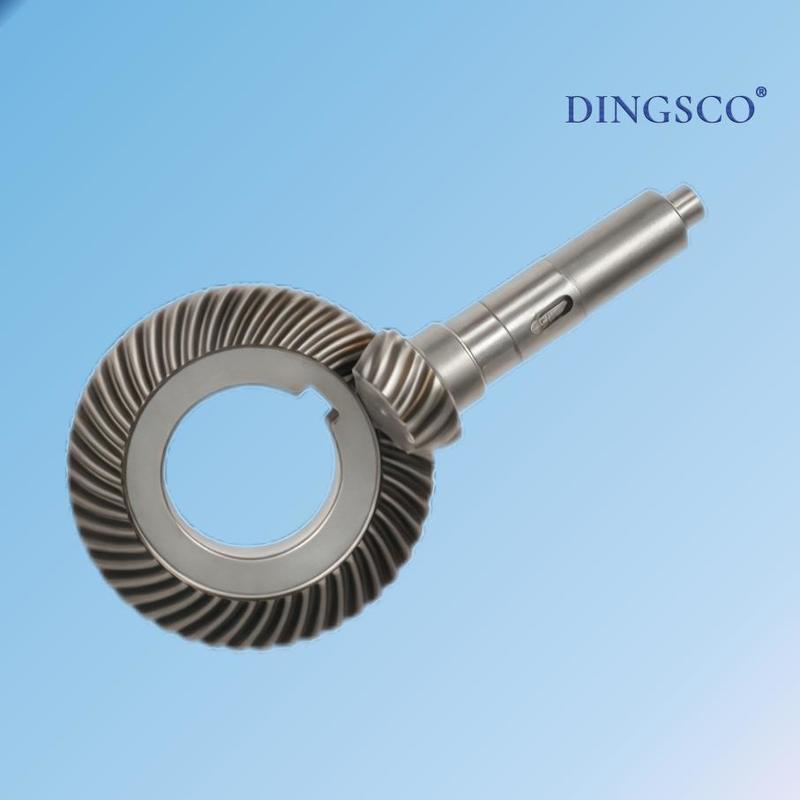

Spiral Bevel Gear Set for Precision Right-Angle Transmission
The spiral bevel gear set is a high-precision mechanical transmission component designed to transfer motion and power between intersecting shafts, typically at a 90-degree angle. With helical tooth geometry, these gears deliver smooth, quiet, and efficient power transmission—ideal for micro reducers, automation systems, and high-performance machinery.
Structure & Working Principle
This gear pair consists of:
  • Bevel Pinion (small gear) - connected to the input shaft, responsible for driving
  • Bevel Gear (large gear) - mounted on the output shaft, transmitting motion at a right angle
The spiral bevel design allows progressive tooth engagement, minimizing noise and vibration compared to straight bevel gears. The teeth are precisely ground after heat treatment to ensure excellent contact accuracy, high load capacity, and long service life.
Technical Specifications
Gear Type Spiral Bevel Gear Pair
Transmission Angle 90° (customizable 60°-120°)
Module Range m0.8 - m6
Tooth Surface Accuracy AGMA 10-12 / DIN 6
Gear Ratio 1:1 to 1:10
Material 20CrMnTi, 17CrNiMo6, SCM420, or Custom Alloy Steel
Heat Treatment Carburizing & Quenching (Surface Hardness HRC58-62)
Tooth Grinding Precision Ground for Low Noise
Surface Finish Ra ≤ 0.8 μm
Backlash ≤ 6 arcmin (precision type)
Efficiency ≥ 94%
Lubrication Synthetic gear oil or grease
Application Environment -20°C ~ +120°C
Manufacturing Process
  1. CNC Gear Cutting - Advanced Gleason or Klingelnberg gear-cutting centers ensure perfect spiral geometry
  2. Heat Treatment - Carburized and quenched for surface hardness while maintaining core toughness
  3. Gear Grinding - High-precision grinding achieves low noise and minimal backlash
  4. Dynamic Balancing - Guarantees smooth operation at high speeds
  5. Inspection & Testing - Every gear undergoes runout, tooth contact, and torque verification before delivery
