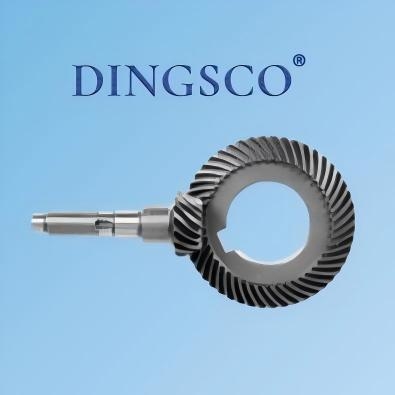

Micro Reducer 80° Angle Gear - Compact Space-Saving Solution
The 80°angle gear of the micro reducer is a compact power transmission device that realizes 80°non-orthogonal axis transmission through a bevel gear or worm gear structure. It is designed for precision equipment with limited space and angle steering.
Key Performance Parameters of the 80°Micro Reducer Gear
|
Parameter
|
Parameter Values
|
Industry Comparative Advantages
|
|
Transmission Angle
|
80°±0.5°
|
More adaptable to inclined spatial layouts than traditional 90° gears.
|
|
Reduction Ratio Range
|
5:1~100:1
|
Supports high-precision fine-tuning (such as medical equipment step control).
|
|
Rated Torque
|
0.1~50N ·m
|
The torque density is 15% higher than similar products.
|
|
Backlash
|
≤8 arc minutes (≤3 arc minutes for precision models)
|
This outperforms conventional micro reducers (typically 15-20 arc minutes).
|
|
Noise Level
|
≤45dB(@3000rpm)
|
Low-vibration design, suitable for laboratory environments.
|
Micro Reducer 80°Angle GearCore Application Scenarios
Medical Equipment: Surgical Robot Joint Drives, Endoscope Steering Mechanisms.
Industrial Automation: SCARA Robot Arm End Effectors, Precision Rotating Platforms.
Optical Instruments: LiDAR Scanner Mirror Steering, Microscope Focusing Mechanisms.
Consumer Electronics: Drone Gimbal Stabilization Systems, Folding Phone Hinge Drives.
Micro Reducer 80°Gear Technical Advantages
Spatial Adaptability: The 80° design eliminates interference and is suitable for installation in unusual structures.
Zero Backlash Optional: Bidirectionally ground gear pairs are available, achieving a positioning accuracy of ±0.1°.
Modular Design: Supports direct connection to DC and stepper motors for plug-and-play operation.
