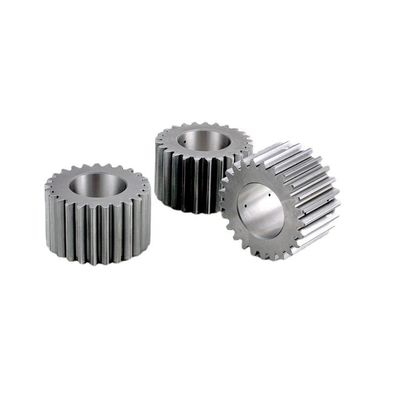

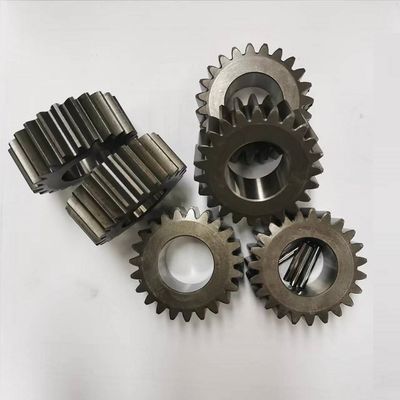

Robot Spur Gear Small Modulus Straight Teeth External Gear For Moderate Torque

Industrial Robot Spur Gear Small Modulus Straight Teeth External Gear For Moderate Torque Transmission

In industrial robots, spur gears are commonly used for power transmission and precise motion control. Spur gears are a type of cylindrical gear with straight teeth that are mounted on parallel shafts. Here are some specific applications of spur gears in industrial robots:

• Motor-to-Drive Transmission: Spur gears are often used to transmit power from the robot's motors to the various drive shafts and actuator mechanisms. The motor's rotational motion is transferred to the drive shaft through a spur gear arrangement, enabling the robot to move and perform specific tasks.
• Gear Reduction: Spur gears can be employed to achieve gear reduction in industrial robots. By using spur gears with different numbers of teeth, the rotational speed from the robot's motor can be reduced while increasing the torque output. This allows the robot to generate higher force or manipulate heavy loads with increased precision.
• Joint Motion Control: Spur gears play a crucial role in controlling the motion of the robot's joints. Each joint in an industrial robot typically requires a mechanism to convert the rotational motion of the actuator into the desired joint movement. Spur gears are commonly used in these mechanisms to control the angular position and movement of the joints accurately.
• Gear Trains: Spur gears are utilized in gear trains within the robot's mechanisms to transmit motion and torque across multiple axes. Gear trains composed of spur gears can be designed to achieve specific speed ratios and torque distributions required for the robot's kinematic structure.
• Positioning and Indexing: Spur gears are essential for precise positioning and indexing in industrial robots. By rotating the spur gears, the robot's joints can be accurately controlled to achieve specific angular positions. This is crucial for tasks that require precise and repeatable movements, such as assembly operations or pick-and-place tasks.
• Backlash Compensation: Backlash, which is the slight play or clearance between the teeth of gears, can affect the accuracy and repeatability of robot movements. Design considerations, such as gear meshing and tooth profile optimization, are implemented in spur gears to minimize backlash and ensure more precise and reliable robot operation.
