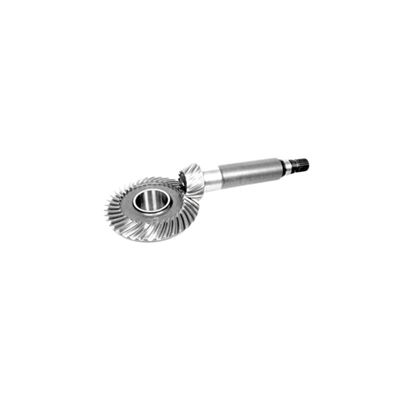

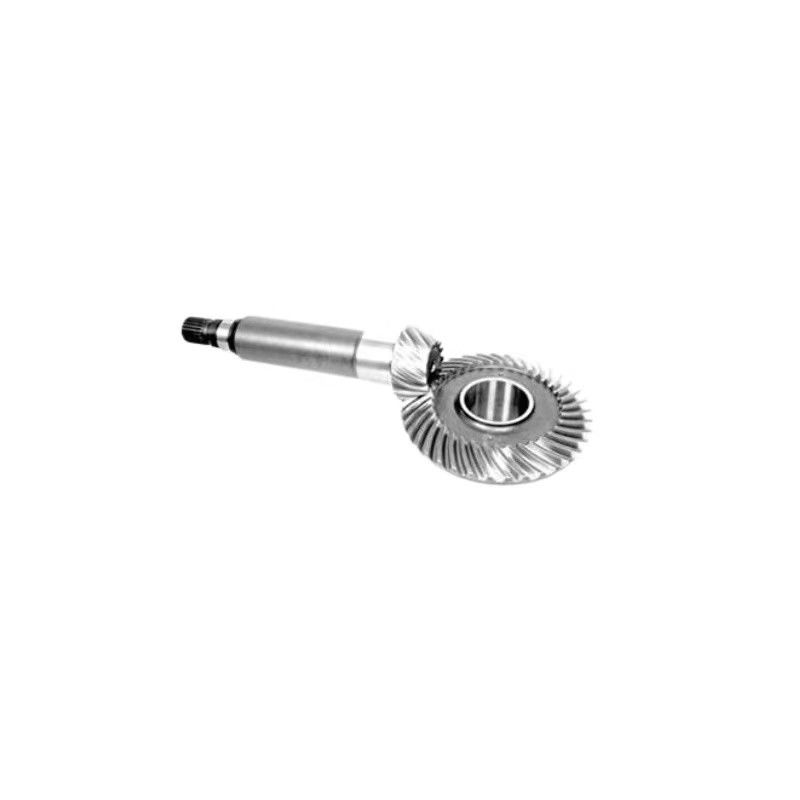

Spiral Bevel Gears Pinions Shaft Gear For Marine Transmission

Spiral Bevel Gears Pinions Shaft Gear For Marine Transmission
Spiral Bevel Gears Pinions Shaft Gear For Marine Transmission Spiral Bevel Gears Pinions Shaft Gear For Marine Transmission

Large Image :  Spiral Bevel Gears Pinions Shaft Gear For Marine Transmission

Product Details:
Place of Origin: Changsha, China
Brand Name: Dingsco
Certification: ISO9001
Payment & Shipping Terms:
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: According to customer's requirement
Delivery Time: About 30 days
Payment Terms: T/T
Supply Ability: Negotiable
Contact Now

Spiral Bevel Gears Pinions Shaft Gear For Marine Transmission

Description
Material: Steel Shape: Spiral
Accuracy Grade: ISO5-6 Grade Heat Treatment: Carburizing,quenching, Carbonitriding, High-frequency, Quenching, Tempering Etc
Service: Customized Service Hardness: Hardened
Processing: Forging, Hobbing, Shaping, Shaving, Grinding Etc
Highlight:

Marine Transmission Spiral Bevel Gears

,

Pinions Shaft Spiral Bevel Gears

,

Marine Transmission Pinions Shaft Gear

Characteristics

Bevel gears for marine are made from high-strength and corrosion-resistant material to withstand the harsh marine environment.

The gear ratio of bevel gears determines the relationship between the rotational speeds and torques of the driving and driven gears.

To enhance passenger and crew comfort, noise-reducing features such as precision grinding, correct alignment and backlash control are used.

It can transmit power and motion reliably, efficiently and permanently in the marine environment.

Spiral Bevel Gears Pinions Shaft Gear For Marine Transmission 0

Specification

Material 20CrMnTi,18CrNiMo7-6, 20MnCr5 etc
Shape Bevel
Hardness Hardened
Surface Bright
Pressure Angle 20°, also can be customized
Accuracy Grade ISO 6-7 Grade
Gear Wheel Diameter Range 20-1250mm
Heat Treatment Carburizing, quenching, carbonitriding, high-frequency, quenching, tempering etc.
Processing Forging, hobbing, shaping, shaving, grinding etc
Application Marine



Mainly engaged in the design, processing and sales of high-precision, high-strength, small-module spiral bevel gears, high-reduction ratio hypoid gears, and cylindrical gears.



Processing Features:
1. DH precision manufacturing: Spiral bevel gears require precision manufacturing processes due to their complex tooth geometry. Gear teeth are typically produced using specialized cutting tools, the accuracy of the cutting process directly affects the performance and durability of the gear. We have multiple CNC 7-axis 5-linkage spiral bevel gear grinding machines and gear milling machines, which can process high-reduction ratio hypoid gears and end-face arc tooth couplings.
2. Gear grinding: After the initial cutting process, spiral bevel gears often need to be ground. Grinding helps improve gear tooth surface finish, accuracy, and tooth-to-tooth contact. Ensure correct gear meshing to reduce noise and vibration during operation.
3. Heat treatment: Heat treatment is an essential step in processing spiral bevel gears. It involves heating the gear to a specific temperature and then quenching it to achieve the required hardness and strength. Heat treatment helps improve gear durability and wear resistance.

4. Inspection and Quality Control: Due to the critical nature of spiral bevel gears, strict inspection and quality control procedures are adopted during their manufacturing process. In order to ensure the dimensional accuracy and tooth profile consistency of the gears, we use various measurement methods, such as three-dimensional coordinate measuring machines (CMM), and we use the high-precision gear measurement center to complete the gear pitch accuracy detection, tooth profile error detection and reverse correction of tooth profile errors.



Spiral Bevel Gears Pinions Shaft Gear For Marine Transmission 1Spiral Bevel Gears Pinions Shaft Gear For Marine Transmission 2

Spiral Bevel Gears Pinions Shaft Gear For Marine Transmission 3Spiral Bevel Gears Pinions Shaft Gear For Marine Transmission 4
