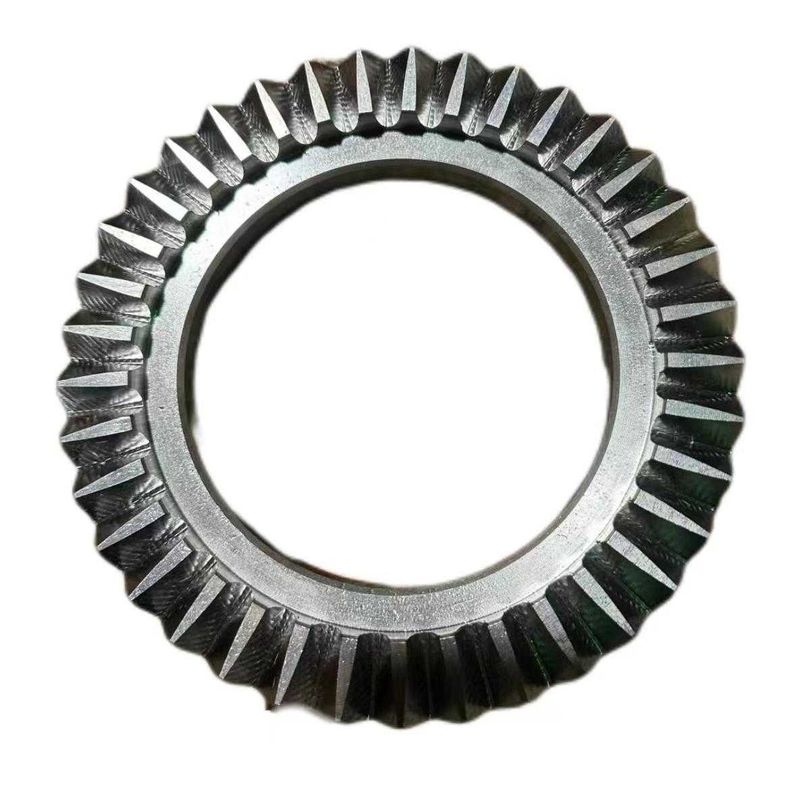

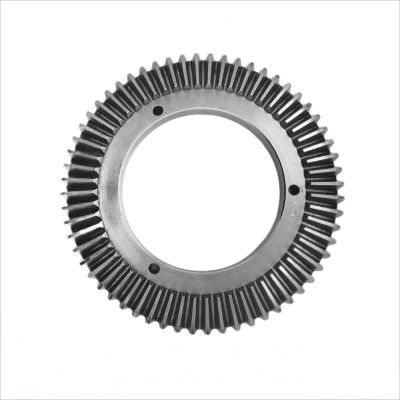

Straight bevel gear transmission is a common transmission method in mechanical transmission. It is characterized by high efficiency, good stability, low noise, and other advantages.
It has been widely used in industrial production. Straight bevel gears have high matching accuracy requirements because their meshing surfaces are conical surfaces, and there are also lateral and radial forces.
Therefore, special processing equipment and processes are required during the processing to ensure the accuracy and quality of the gears.
Advantages of straight bevel gear set
High efficiency: Spur bevel gear transmission has the advantages of high efficiency and high torque transmission capacity, and is widely used in mechanical transmission.
Good stability: Spur bevel gear transmission has a simple structure and good stability, with low noise, low vibration and long service life during operation.
High reliability: Spur bevel gear transmission has a compact structure, strong load-bearing capacity, and high reliability and safety.
Application fields of straight bevel gear sets
Different application areas of straight bevel gear sets in various industries include:
Marine: transmit power and torque between intersecting shafts, enabling efficient rotation and alignment of propulsion systems and auxiliary machinery.
Aircraft: facilitate power transfer and torque between intersecting shafts, enabling effective transmission and synchronization of engine and rotor systems.
Mining machinery: transmitting power and torque between intersecting shafts, enabling efficient movement and operation of heavy-duty equipment such as crushers, conveyors, and excavators in rugged mining environments.
Specification
| Material |
High-quality alloy steel or cast steel |
| Shape |
Straight bevel |
| Hardness |
Hardened |
| Surface |
Bright |
| Pressure Angle |
20°, also can be customized |
| Accuracy Grade |
ISO 6, ANSI 3, AGMA12, DIN6, FN B, GB6, BS A1. |
| Gear Wheel Diameter Range |
20-1250mm |
| Heat Treatment |
Carburizing, quenching, carbonitriding, high-frequency, quenching, tempering etc. |
| Processing |
Forging, hobbing, shaping, shaving, grinding etc. |
| Application |
Marine, aircraft, mining machinery etc.
|
Whether replicating your current gear set with case-carburized gearing or upgrading to a new design, our capabilities ensure precision and quality!
