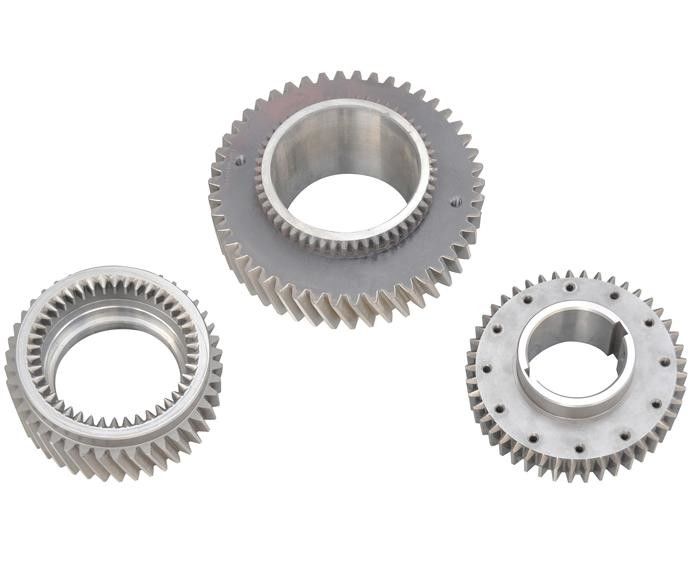

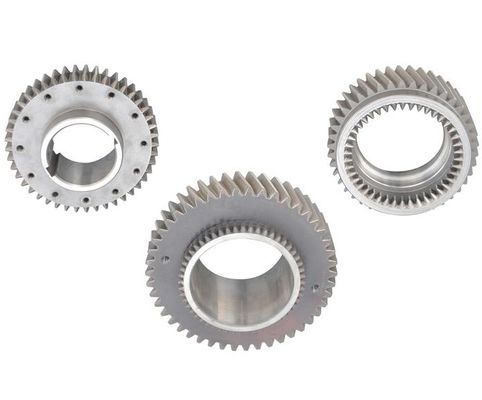

Cylindrical Spur Gears Helical Gears Vertical Machine Tool Gears
1. Cylindrical spur gears and helical gears are usually used in spindle transmission systems.
2. Cylindrical spur gears and helical gears are simple structures, easy manufacturing, high transmission efficiency.
The functions and advantages of Cylindrical Spur Gears Helical Gears:
1. Transmitting power: Both spur gears and helical gears can effectively transmit power, so that the spindle and tool system of the machine tool can obtain the necessary speed and torque.
2. Adjusting speed and torque: Through different gear combinations, the working speed and torque of the machine tool can be adjusted to meet different processing requirements.
3. Direction conversion: Due to its unique inclined tooth surface, the helical gear can achieve the change of power transmission direction without adding additional transmission devices.
Application of Cylindrical Spur Gears Helical Gears:
1. Spindle drive: Helical gears are often used in the spindle drive system of vertical machine tools to provide high efficiency and reliable performance.
2. Feed system: Spur gears and helical gears can also be used for the transmission of the feed system to ensure the precise movement of the tool.
3. Reversing device: Helical gears can be used in the reversing device to enable the machine tool to quickly switch between forward and reverse rotation.
Cylindrical Spur Gears Helical Gears parameters:
| Products |
Cylindrical Spur Gears Helical Gears Vertical Machine Tool Gears |
| Material |
16MnCr5,20CrMnTi |
| Shape |
Spur gear, helical gear |
| Manufacturing process |
gear grinding |
| Module (M) |
≤4 |
| Teeth Accuracy Grade |
ISO 5-6 Grade |
| Heat Treatment |
Carburizing and quenching, nitriding, surface hardening |
| Application |
Spindle drive, Feed system, Reversing device |
The design of Cylindrical Spur Gears Helical Gears Vertical Machine Tool Gears:
1. Gear material: usually made of alloy steel or tool steel to withstand the high load during machine tool processing.
2. Heat treatment: The gear undergoes appropriate heat treatment, such as carburizing and quenching, to improve its hardness and wear resistance.
3. Precision: The gears of vertical machine tools require high-precision processing to ensure smooth and reliable transmission.
About us: We are committed to being the best high-precision spiral bevel gears supplier.
1. 30 years experience in manufacturing industrial gears.
2. Main products: spiral bevel gears, high reduction ratios, hypoid gears and cylindrical gears.
3. Our gears are suitable for power cutter tower, industrial sewing machines, reduction gears, bicycles, power tools and aeromodelling.
4. Provide customized services.
Case photo:
