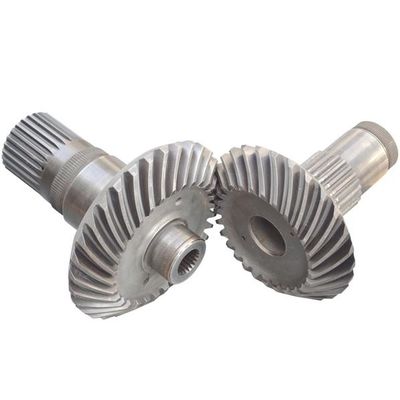

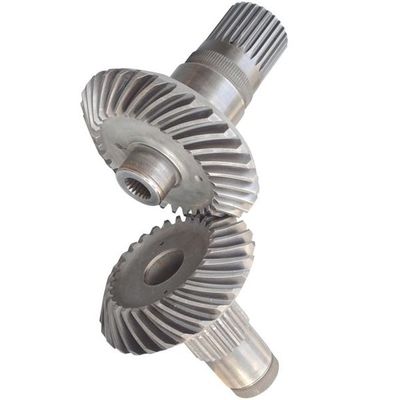

Small Module Spline Shaft Spiral Bevel Gear Grinding Gear With High Precision
1. Spline spiral bevel gears provide precise transmission ratios.
2. Modulus spline shaft spiral bevel gears are usually made of high-quality materials with high strength and wear resistance.
3. Small module spline shaft spiral bevel gear is a special type of gear, which combines the characteristics of spline shaft and spiral bevel gear, suitable for precision mechanical transmission systems.
The advantages of Spline Shaft Spiral Bevel Gear :
1. Spline shafts provide a reliable way to connect shafts and gears, capable of withstanding large torques and axial forces.
2. Spline connections have a high resistance to disengagement and are suitable for working environments with large vibrations.
3. The helical tooth design of spiral bevel gears makes gear meshing smoother, reducing impact and noise during transmission.
4. The spiral teeth can gradually enter and disengage, allowing for smoother acceleration and deceleration.
5. Due to the large contact area of the tooth surface of the spiral bevel gear, it has a higher load-bearing capacity.
6. The design of the spline shaft also enhances the connection strength between the gear and the shaft, further improving the overall load-bearing capacity.
7. Spiral bevel gears generate axial forces when meshing, but the design of the spline shaft helps to balance these forces and reduce the impact on the supporting structure.
8. The design of spiral bevel gears allows for a smaller center distance between the gear shafts, which makes the overall structure more compact and suitable for occasions with limited space.
The applications of Spline Shaft Spiral Bevel Gear:
This type of gear is suitable for a variety of mechanical transmission systems, including automobiles, machine tools, robots, aerospace equipment, etc.
Spline Shaft Spiral Bevel Gear parameters:
| Products |
Small Module Spline Shaft Spiral Bevel Gear Grinding Gear With High Precision |
| Material |
20CrMnTi/20CrMo/20CrNiMo/18CrNiMo/38CrMoAl/42CrMo/40Cr/45#/PA66/416/410/304...... |
| Shape |
bevel gear |
| Manufacturing process |
grinding |
| Module (M) |
≤4 |
| Teeth Accuracy Grade |
ISO 4-8Grade |
| Heat Treatment |
Quenching and tempering |
| Application |
automobiles, machine tools, robots, aerospace equipment |
| Processing Equipment |
CNC machine tool |
About us: We are committed to being the best high-precision spiral bevel gears supplier.
1. 30 years experience in manufacturing industrial gears.
2. Main products: spiral bevel gears, high reduction ratios, hypoid gears and cylindrical gears.
3. Our gears are suitable for power cutter tower, industrial sewing machines, reduction gears, bicycles, power tools and aeromodelling.
4. Provide customized services.
