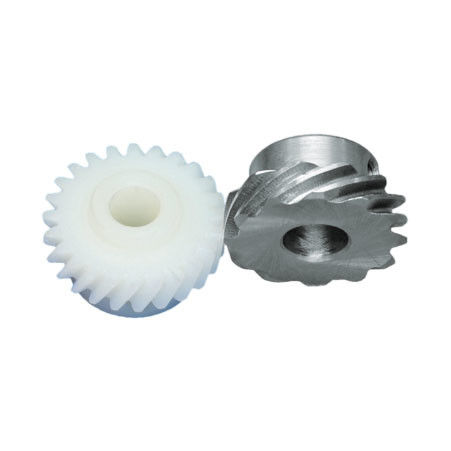

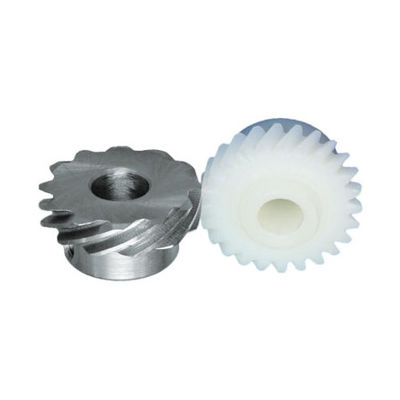

Helical Spur Pinion Stricutting Milling Gear CNC Machined Gear Components

Helical Spur Pinion Stricutting Milling Gear CNC Machined Gear Components

The cylindrical helical gear used in lamination machines is a professional mechanical component. Its main features and uses are as follows:

Features

• Smooth transmission: Compared with spur gears, helical gear transmission is more stable and has smaller impact, vibration and noise, making it suitable for high-speed and heavy-load situations.
• Compact structure: The design of helical gears allows for a closer center distance, making the overall structure more compact.
• High efficiency: The transmission efficiency of helical cylindrical gears is higher than that of spur gears.

Advantages: good meshing performance, suitable for high speed and heavy load conditions; large coincidence, improved load-bearing capacity and extended gear life; compact structure.

Disadvantages: Helical gears will produce axial force components when meshing, which may have an adverse effect on gear transmission.

Application
Cylindrical helical gears are widely used in mechanical equipment that require high-speed and heavy-load transmission, such as pull-top machines. They are particularly suitable for situations where transmission smoothness and noise levels are required.

In general, the cylindrical helical gear used in the lamination machine is an efficient and stable transmission component suitable for high-speed, heavy-load industrial applications.

Who we are?

We're the production R&D base specializing in professional design, reserch, manufacture and sales of high-quality small module spiral bevel gears and high reduction hypoid gears and cylindrical gears.

We have strong scientific research and development capabilities and is also equipped a full set of advanced equipment including seven-axis five-linkage CNC spiral bevel gear grinding machines and gear milling machines. By making the best use of the scientific and technological achievements and equipment of the Gear Research Institute of Central South University, machanical processing, heat treatment and testing. We have developed high-quality products featuring high reduction, high speed, heavy load, low noise and less teeth for users.

Welcome to Customized: Non-standard customization of Dinghan gears

1.Our company has a complete set of software to realize digital closed-loop manufacturing of spiral bevel gears, Functions such as gear design, strength calculation, contact analysis, tool calculation, tooth profile error reversal, etc. can be realized.

2.Machining methods include five tools machining(fixed setting) & G-plete of tapper , spiral format tilt(SFT) method & hypoid format tilt (HFT) method of Cycloid equidep, etc
