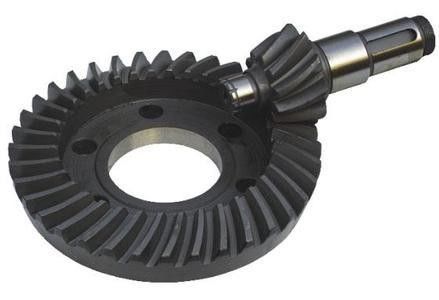

Bevel Gears With Quenching For Industrial Transmission Equipment
Bevel gears are widely used in industrial transmission equipment, vehicle differentials, locomotives, ships, power plants, steel mills, railway track inspections, etc.
Bevel gears are an important transmission element with the characteristics of accurate transmission ratio, smooth transmission, and low noise.
The main parameters of bevel gears:
Number of teeth, module, pressure angle, tooth top height, tooth root height, face cone angle (top cone angle), pitch cone angle (pitch cone angle), root cone angle, back cone distance, wheel crown distance, installation distance, fixed chord tooth thickness, fixed chord tooth height, displacement coefficient, backlash, etc.
Classification of bevel gears:
Bevel gears can be divided into straight bevel gears, helical bevel gears and curved bevel gears according to different tooth shapes.
Characteristics of bevel gears:
1. Accurate transmission ratio: The transmission ratio of bevel gears is determined by the gear ratio, and the transmission is accurate and reliable.
2. Smooth transmission: Since the tooth surface is an involute or other special curve, the tooth surface contact is stable during the transmission
process, reducing impact and vibration.
3. Low noise: Due to the smooth transmission, the noise generated by bevel gears during operation is relatively small.
4. Strong load-bearing capacity: The bevel gear has a large tooth surface contact area and can withstand large loads.
5. Strong adaptability: Bevel gears can adapt to the transmission requirements between two axes with different intersection angles, and are highly flexible
Working principle of bevel gears:
Bevel gears rely on the driving wheel teeth to push the driven wheel teeth in sequence, thereby achieving movement and power transmission between the two shafts. During the transmission process, the movement of a pair of bevel gears is equivalent to a pair of pitch cones doing pure rolling.
Bevel Gears:
| Products |
Bevel Gears With Quenching For Industrial Transmission Equipment |
| Material |
20CrMnTi/20CrMo/20CrNiMo/18CrNiMo/38CrMoAl/42CrMo/40Cr/45#/PA66/416/410/304...... |
| Shape |
Bevel gear |
| Manufacturing process |
Quenching |
| Module (M) |
≤4M |
| Teeth Accuracy Grade |
ISO 6-7 Grade |
| Heat Treatment |
Quenching |
| Application |
Vehicle differentials, locomotives, ships, power plants, steel mills, railway track inspection, etc. |
DINGSCO-We are committed to being the best high-precision spiral bevel gears supplier.
1. 30 years experience in manufacturing industrial gears.
2. Main products: spiral bevel gears, high reduction ratios, hypoid gears and cylindrical gears.
3. In 2023, Hunan Dinghan New Material Technology Co., Ltd. was established as a specialized international export company business unit.
