Custom Industrial Hypoid Gear Made of 20CrMo with High Reduction Ratio and ISO 5-8 Grade Teeth Accuracy for High Precision

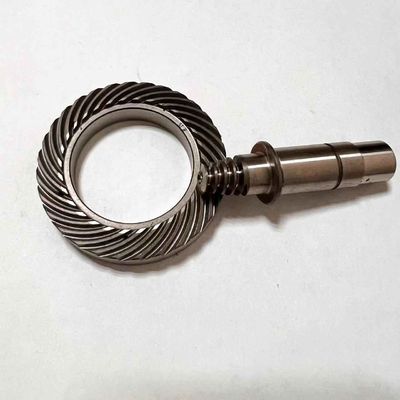

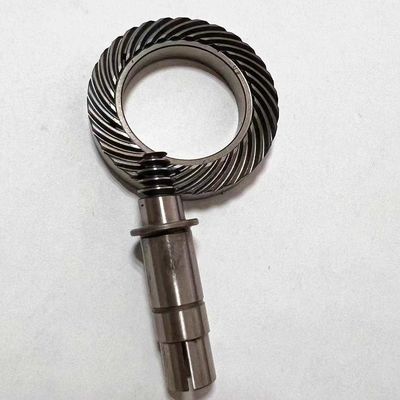

1:30 High Precision High Reduction Ratio Hypoid Gear

1:30 high precision high reduction ratio hypoid gear, which is specially designed and developed for robot joints and hollow rotating platforms that require large torque output, high reduction ratio, and compact structure.

The application of hypoid gear:


Due to its unique structure and excellent load-bearing capacity, hypoid gears are widely used in the following fields:

1. Automobile industry: Mainly used in the rear axle differential and the final reducer part of the all-wheel drive system.

2. Heavy machinery: Large machinery such as excavators and cranes rely on their high torque output.

3. Metallurgical Industry: Rolling mills and other heavy-duty conveying equipment perform reliably in harsh working environments.

Advantages of hypoid gear design:

Hypoid gear is an advanced helical gear transmission system. Its distinctive feature is that the axes of the two gears are neither parallel nor intersecting. In applications such as automobile rear axle differentials, hypoid gears are widely used because they can achieve high transmission ratios in a limited space and allow the height difference between the center line of the main reducer and the center line of the drive shaft.

Characteristics of 1:30 High Precision High Reduction Ratio Hypoid Gear:

1. High transmission accuracy
2. Large reduction ratio
3. Large transmission torque

Gear structural characteristics:


1. Helix angle: The helical shape of the tooth surface enhances the gear's ability to carry large loads and ensures stability during high-speed operation.

2. Offset: The tooth surface offset caused by the non-parallel shaft design effectively improves the load-bearing capacity and transmission efficiency of the gear.

3. Contact characteristics: A larger tooth surface contact area helps reduce wear and extend the service life of the gear.

Hypoid Gear

DINGSCO-We are committed to being the best high-precision spiral bevel gears supplier.
1. 30 years experience in manufacturing industrial gears.
