Helical Angle Pinion Kit Right Angle Transmission For Micro Reducer 90

Helical Angle Pinion Kit Right Angle Transmission For Micro Reducer 90

•  Structural Design:

1.Helical tooth meshing, smooth and efficient: This helical tooth shape design of the gear makes the gear gradually cut in and out during meshing, and the number of tooth pairs involved in meshing is more, and the degree of overlap is high. Compared with straight gears, it can effectively reduce shock and vibration, run more smoothly, lower noise, and the transmission efficiency can reach more than 95%, ensuring efficient and accurate power transmission.
2.Right-angle drive, compact layout: The input shaft and output shaft are at an angle of 90° to achieve right-angle drive. This layout eliminates the need for an additional steering mechanism, which saves space and enables the Micro Reducer 90 to be installed flexibly in tight spaces and is suitable for micro devices with demanding volume requirements, such as precision instruments, small robots, etc.

•  Material Properties:

1.Bright surface, reliable quality: The gear is made of high-quality alloy steel, through carburizing and quenching and other heat treatment processes, the hardness of the tooth surface can reach 56 - 62HRC, the core maintains good toughness, both wear-resistant and impact-resistant, can withstand a certain load, prolong the service life, and meet the working needs of the micro reducer under different working conditions.

•  Appearance and size adaptation:

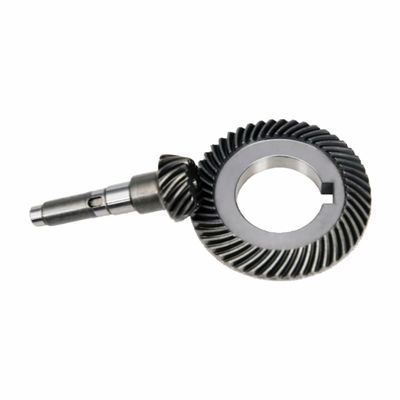

1.Compact design, adaptation to miniaturization: The overall size of the gear is small, the annular structure of the large gear and the shaft extension design of the pinion are easy to assemble with other components inside the micro reducer. This design enables the reducer to realize power steering and deceleration functions in a limited space, such as in small automation equipment, which can accurately control the direction of power transmission, while ensuring the miniaturization and lightweight of the equipment.

The angle gear achieves efficient and smooth transmission through the helical tooth structure, meets the space constraints with the right-angle layout, and ensures reliable performance with high-quality materials, which fully meets the requirements of the micro reducer 90 for compactness, efficiency and stability, and provides accurate and stable power conversion solutions for micro equipment.

DINGSCO Precision Gear Solutions — Pioneering Force in Equipment Transmission

Core Advantages: Cutting-Edge Equipment × Digitalized Processes × Full-Cycle Services

As a leading precision gear manufacturer, DINGSCO specializes in customized production of micro high-precision spiral bevel gears and hypoid gears through our multiple CNC seven-axis five-linkage spiral bevel gear grinding/milling machines and Gleason spiral bevel cutter technology. With DIN 6 precision class (tooth profile error ≤ ±5μm), 95%+ transmission efficiency, and ultra-high reduction ratios, we deliver reliable transmission solutions for robotics, motor drives, new energy vehicles, and more.

Why Choose DINGSCO?
✅ High Precision: Achieving DIN 6 grade accuracy, leading the industry in controlling tooth profile errors.

✅ High Efficiency: With a single - stage reduction ratio of up to 300:1, and a transmission efficiency of over 95%.

✅ Durability: 40% lower lifecycle cost, <0.5% failure rate.
✅ Fast response: The digital process can shorten the delivery cycle to 20 working days.

Contact Us Soon for gear optimization proposals and 3D meshing simulations!
