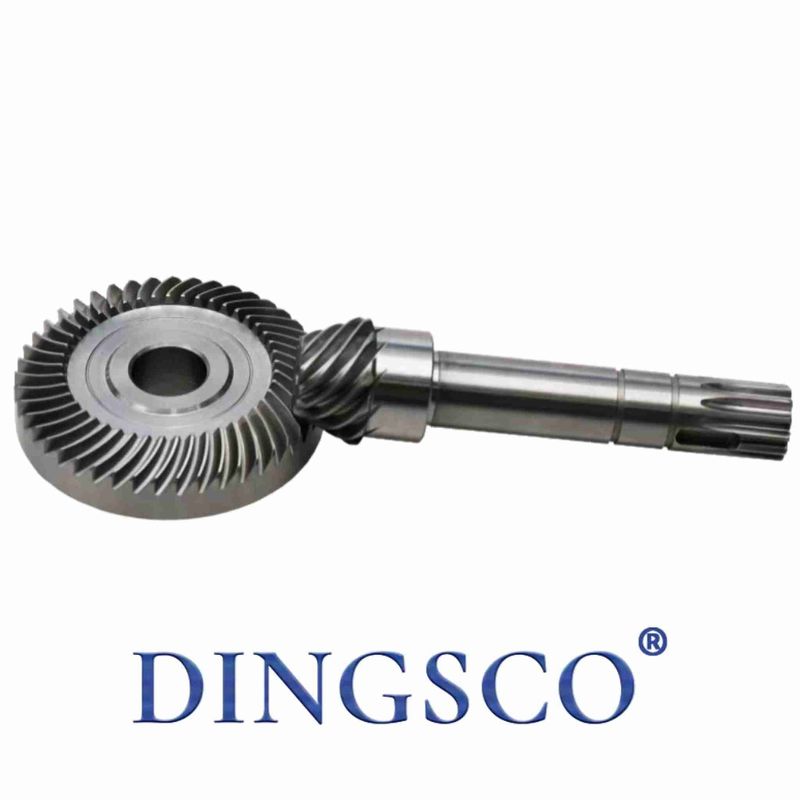

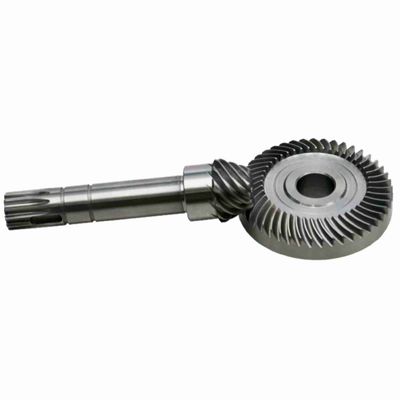

High-Engagement Structure Compact Common Hypoid Gear

What are the characteristics of Common hypoid gear?

Ordinary quasi-hyperbolic gears are a type of spiral bevel gears with tooth surfaces shaped like quasi-hyperbolas. Unlike typical gears, their axes aren't parallel or intersecting. Instead, they have a slight offset, causing the driving and driven gears to mesh in an asymmetrical position. This unique design offers smoother and quieter operation, making it a great choice for various mechanical applications. Give your projects the advantage of precision and reliability with these gears!

Advantages

This gear system offers several key benefits.

First, its high overlap ensures smooth and stable transmission, enhancing the load-bearing capacity. The tooth surface contact stress is evenly distributed, allowing it to handle significant loads effortlessly.

Despite its compact design, it delivers a high transmission ratio and torque, making it perfect for applications where space is limited.

Additionally, its unique meshing method reduces friction, resulting in low noise and high efficiency—typically between 90% and 96%. This means less energy is wasted, and you get more out of your system.

Plus, its wide application range makes it suitable for various working conditions, from low-speed heavy loads to high-speed precision transmission. Upgrade to this gear system and experience the difference in performance and efficiency.

To sum it up, ordinary quasi-hyperbolic gears have become a must-have in modern industry thanks to their high efficiency, impressive load-bearing capacity, and compact design. They're widely used in cars, aerospace, and high-end manufacturing. However, their complex manufacturing and maintenance can be a bit of a challenge. But don't worry, future tech advancements will likely make them even better and broaden their use even more.

Why choose us?

Since 1994, we have been deeply rooted in the field of high-end internal bevel gears and custom gears. With over three decades of industry experience, we have a rigorous commitment to ISO 4-6 standards—quality is always a non-negotiable priority. Each gear is meticulously crafted to ensure exceptional reliability and long-lasting performance. We are confident that our tailor-made, premium solutions will not only fit your requirements precisely but also deliver results that go beyond your expectations.

Our team stands as a pillar of expertise, comprising a doctoral graduate, a distinguished member of the China Gear Standardization Technical Committee, and a postgraduate researcher specializing in bevel gear studies. This blend of talent ensures robust technical innovation and strict adherence to industry benchmarks.

On the production front, our facility is equipped with advanced CNC seven-axis, five-linkage spiral bevel gear grinding and milling machines, along with a complete set of cutting-edge manufacturing and testing equipment. From production to quality inspection, every step is tightly controlled to guarantee that each product meets the highest standards of both quality and efficiency.

Let us assist you in finding the ideal gear solution—reach out to us today!
