Precision Spiral Bevel Gear Set with ISO 5-6 Gear Accuracy and Up to 96% Efficiency for Industrial Reducer Applications
  • Precision Spiral Bevel Gear Set with ISO 5-6 Gear Accuracy and Up to 96% Efficiency for Industrial Reducer Applications
  • Precision Spiral Bevel Gear Set with ISO 5-6 Gear Accuracy and Up to 96% Efficiency for Industrial Reducer Applications
Precision Spiral Bevel Gear Set with ISO 5-6 Gear Accuracy and Up to 96% Efficiency for Industrial Reducer Applications

Precision Spiral Bevel Gear Set with ISO 5-6 Gear Accuracy and Up to 96% Efficiency for Industrial Reducer Applications

Place of Origin Changsha, China
Brand Name SJ, DH
Certification ISO 9001
Product Details
Application:
Micro Gear Reducers, Robotic Joints, Machine Tool Spindles, Automotive Differentials, And Aerospace Drive Systems.
Material:
Alloy Steel / Carburized Steel (20CrMnTi, 17CrNiMo6, Etc.)
HS Code:
848340
Efficiency:
Up To 96%
Gear Shape:
Spiral / Hypoid Design
Gear Accuracy:
ISO 5-6
Highlight:

Precision spiral bevel gear set

,

Industrial reducer bevel gears

,

Power transmission bevel gear set

Payment & Shipping Terms
Minimum Order Quantity
Negotiable
Price
Negotiable
Packaging Details
According to customers' requests
Delivery Time
(Sample order) 7 days
Payment Terms
T/T
Supply Ability
Negotiable
Product Description

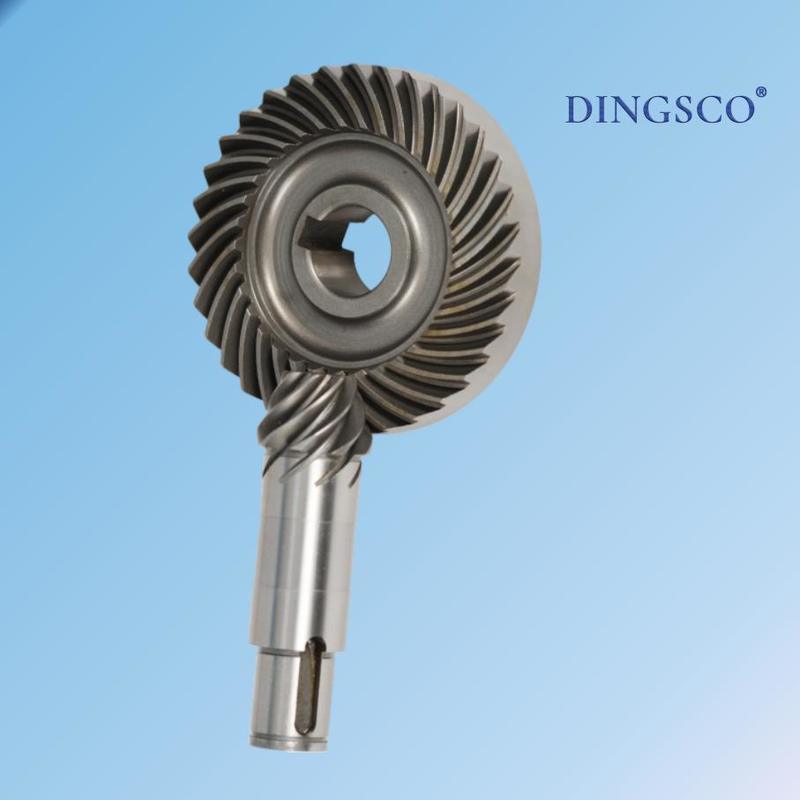

Precision Spiral Bevel Gear Set: Engineered for Optimal Power Transmission
High Precision Right Angle Transmission Solution
The spiral bevel gear set represents the pinnacle of precision engineering in power transmission components. Comprising a spiral bevel gear and a pinion shaft, this assembly is designed to deliver smooth, efficient torque transfer at 90° angles, making it indispensable for applications demanding high accuracy, low noise, and robust durability.
Technical Excellence
  • Design & Geometry: The spiral teeth feature a curved profile that meshes gradually, reducing impact loads and minimizing operational noise. This spiral design also enables higher load-carrying capacity compared to straight-bevel alternatives.
  • Material & Hardness: Fabricated from premium alloy steel, the gears undergo precision heat treatment (carburizing, quenching) to achieve a surface hardness of HRC 58-62, ensuring exceptional wear resistance and fatigue strength.
  • Manufacturing Precision: Employing advanced CNC gear cutting and grinding technologies, the gear set meets AGMA Class 10-12 standards for tooth profile, pitch, and surface finish, guaranteeing seamless meshing and long-term reliability.
Applications
  1. Automotive: Differential drives, power steering systems, and specialty vehicle transmissions.
  2. Aerospace & Defense: Actuation systems, rotorcraft components, and mission-critical machinery.
  3. Industrial Equipment: Robotics, CNC machines, packaging systems, and heavy-duty conveyors.
  4. Marine & Offshore: Propulsion systems, winches, and offshore drilling equipment.
Key Specifications
Gear Type Spiral Bevel Gear / Hypoid Gear
Tooth Finish Precision Grinding
Material Alloy Steel / Carburized Steel (20CrMnTi, 17CrNiMo6, etc.)
Heat Treatment Carburizing, Quenching, and Tempering - Surface Hardness HRC58-62
Gear Accuracy ISO 5-6
Efficiency Up to 96%
Noise Level ≤ 65 dB (at high speed)
Tooth Profile Type Spiral / Hypoid Design
