20CrMnTi High Precision Spiral Bevel Gears for Transmission Part

20CrMnTi High Precision Spiral Bevel Gears for Transmission Part

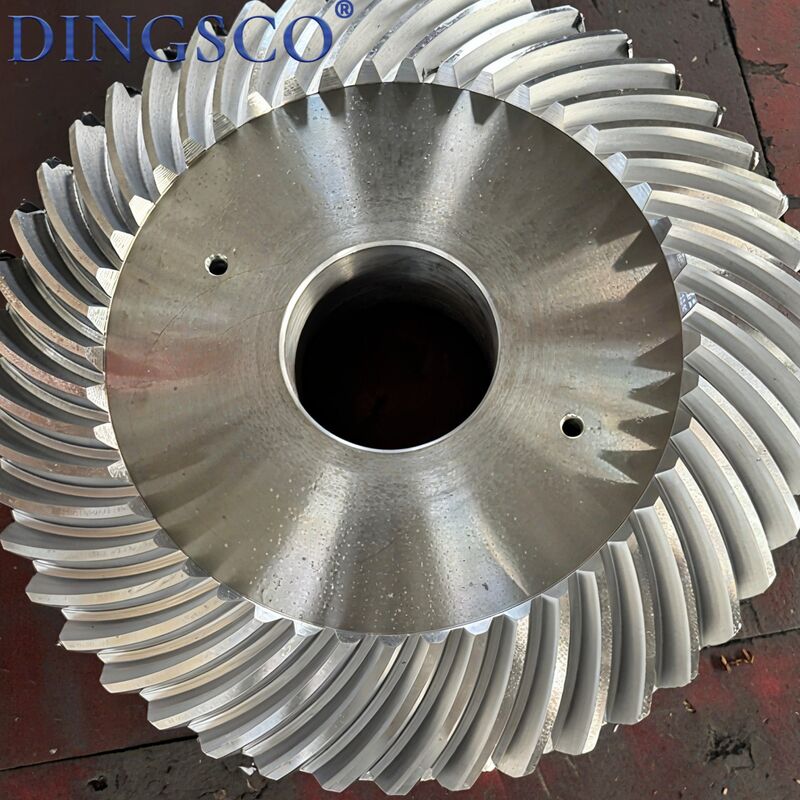

Spiral bevel gear is a high-precision bevel gear that realizes 90° staggered axis transmission with arc spiral tooth traces. Compared with straight bevel gears, it features smoother transmission, higher load capacity and lower noise. Widely used in reducers, differentials, steering mechanisms, machine tools, agricultural machinery, construction machinery, etc., it achieves vertical power transmission, speed reduction and torque increase, serving as a core component of high-end transmission systems.

Product Features

• Spiral tooth surface meshing with high contact ratio, smooth transmission and low impact.
• 90° orthogonal drive, compact structure and flexible layout.
• High load capacity, suitable for heavy-duty, high-speed and continuous operation.
• Low noise, low vibration and high transmission accuracy.
• Available in left-hand, right-hand and customizable shaft angles.
• Hardened tooth surface with good wear resistance and long service life.
• Compatible with Klingelnberg, Gleason and other tooth standards.

Technical Parameter Table

Main Applications

• Automotive rear axle differentials and transfer cases
• Various industrial reducers and right-angle gearboxes
• Machine tool spindles, power turrets and milling heads
• Robot joints and servo steering mechanisms
• Ship, agricultural and mining machinery transmissions
• Aerospace and rail transit precision transmissions
• Right-angle drives for printing, textile and packaging machinery

Product Advantages

• Smoother transmission and much lower noise than straight bevel gears
• Higher load capacity with strong impact and fatigue resistance
• 90° reversing drive, saving installation space
• High precision, small backlash and accurate positioning
• Suitable for high-speed operation up to 10000rpm
• Mature heat treatment with tough and wear-resistant tooth surfaces
• Customizable non-standard angles, modules and modifications

Production Process

• Raw Material Inspection
• Forging / Precision Forging Blanks
• Pre-heat Treatment (Normalizing)
• CNC Turning
• Spiral Bevel Gear Milling (Gleason / Klingelnberg)
• Carburizing & Quenching + Low-temp Tempering
• End Face & Bore Precision Grinding
• CNC Gear Grinding
• Deburring, Cleaning & Flaw Detection
• Accuracy & Meshing Inspection
• Anti-rust Treatment & Packaging

 Cautions

• Overload and over-speed operation are strictly prohibited to avoid tooth breakage.
• Dry running without oil is forbidden to prevent tooth surface burning and wear.
• Do not strike tooth surfaces during installation to avoid precision damage.
• Keep housing sealed to prevent dust and impurities from entering.
• Operating temperature controlled at -20℃~100℃.
• Replace gears in pairs if wear or pitting is excessive.
• Stop immediately if abnormal noise, vibration or overheating occurs.
• Store in dry and ventilated environment to prevent corrosion.

Why Choose us?

• 7-axis CNC Grinding: Tolerances as tight as ±5μm for quiet, durable operation.
• Strong technical expertise: Doctoral and master’s professionals in spiral bevel gear technology.
• Custom Design: Solutions for high-reduction, high-speed, heavy-load, and low-noise and less teeth for users
• Rigorous Testing: 100% inspection via Gleason metrology systems.
