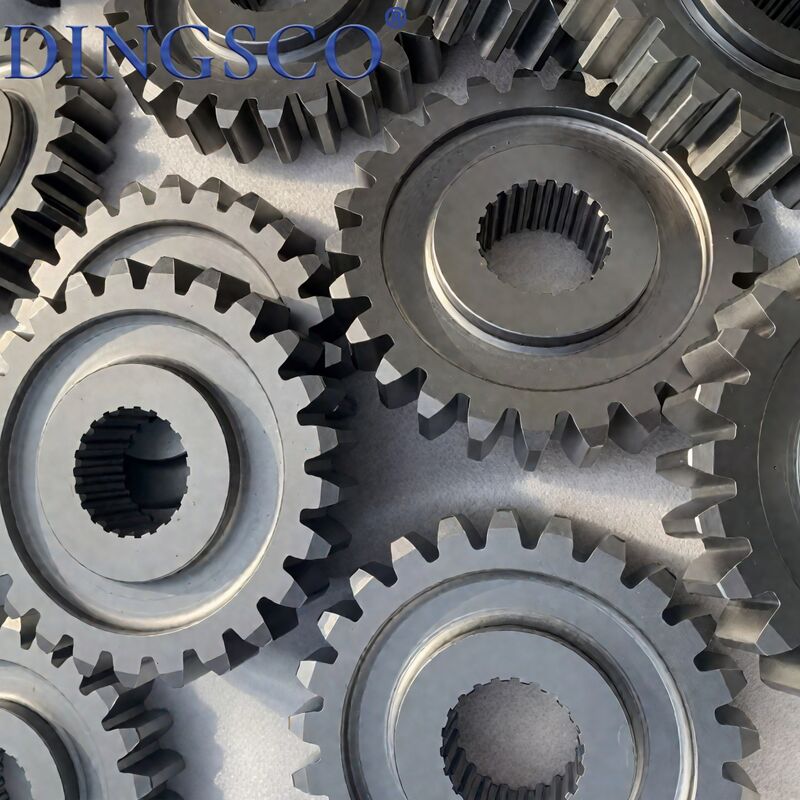

High Precision 20CrMnTi Spur Gears For Industrial Machinery In China

High Precision 20CrMnTi Spur Gears For Industrial Machinery In China

Spur gears are the most basic and widely used fixed-axis transmission gears, with tooth traces parallel to the gear axis, mainly composed of addendum, dedendum, tooth surface, pitch and other structures. Made of high-quality steel through precision machining and heat treatment, they have a simple structure and reliable transmission. They are mainly used for power transmission and speed change between parallel shafts, realizing speed reduction, torque increase and speed increase transmission, and adapting to light load, medium load and some heavy load working conditions. Widely used in industrial machinery, automobiles, agricultural machinery, electric tools, automation equipment and other fields, they are indispensable basic components in mechanical transmission systems.

Product Features

• Tooth traces are parallel to the axis, with simple structure, mature processing technology and low production cost.
• Stable transmission, suitable for parallel shaft forward/reverse transmission, with accurate and constant transmission ratio.
• Line contact during meshing, uniform force, stable load-bearing performance, suitable for light and medium load conditions.
• Controllable precision, which can be processed into ordinary precision and precision according to requirements, adapting to different scenarios.
• Easy installation, no complex positioning, strong interchangeability, easy maintenance and replacement.
• The tooth surface can be strengthened, wear-resistant, fatigue-resistant and long service life.
• No axial force is generated, which has small load on bearings and reduces the operation loss of the whole machine.

Technical Parameter Table

Main Applications

• Automotive Industry: Transmission, differential, steering system, engine auxiliary transmission
• Agricultural Machinery: Transmission mechanisms of tractors, harvesters, rotary tillers and seeders
• Industrial Machinery: Reducers, fans, water pumps, conveyors, machine tool spindle transmission
• Electric Tools: Deceleration transmission components of electric drills, angle grinders and cutting machines
• Automation Equipment: AGV vehicles, assembly lines, robot auxiliary transmission
• Light Industry Machinery: Printing machines, textile machines, packaging machines, food machinery
• Heavy Machinery: Auxiliary transmission of mining equipment, metallurgical equipment and engineering machinery
• Small Equipment: Power transmission of toys, instruments and meters, small motors

Product Advantages

• Simple structure, mature processing technology, low production cost and high cost performance.
• Accurate transmission, constant transmission ratio, no axial force, small load on bearings.
• Easy installation, no complex positioning, strong interchangeability and low maintenance cost.
• Wide adaptation range, precision and material can be adjusted according to working conditions, adapting to light load to heavy load.
• High transmission efficiency, single-stage efficiency ≥ 96%, small energy consumption loss.
• The tooth surface can be strengthened by various methods, wear-resistant, fatigue-resistant and long service life.
• Controllable noise, precision spur gears have low operating noise, suitable for silent working conditions.
• Complete specifications, can be customized with non-standard module, tooth number and size to meet personalized needs.

Production Process

• Raw Material Inspection → 2. Steel Cutting, Forging Forming (heavy-duty gears) / Direct Steel Processing (light-duty)
• Pre-heat Treatment (Normalizing) → 4. CNC Turning of Gear Blanks (outer circle, end face, inner hole)
• Gear Hobbing/Milling (core process) → 6. Tooth End Chamfering and Deburring
• Heat Treatment Strengthening (Carburizing & Quenching/Induction Hardening/Quenching & Tempering) → 8. Low Temperature Tempering for Stress Relief
• Precision Grinding (tooth surface, inner hole, end face) → 10. Tooth Profile Finishing (precision gears)
• Non-destructive Flaw Detection (heavy-duty gears) → 12. Comprehensive Inspection of Dimension, Precision and Hardness
• Anti-rust Treatment (Blackening, Galvanizing, Painting) → 14. Laser Marking, Cleaning and Packaging

Why Choose us?

• 7-axis CNC Grinding: We adopt high-precision 7-axis CNC grinding machines, holding tolerances as tight as ±5μm, ensuring gears run quietly, smoothly and with outstanding durability.
• Strong technical expertise: Our core R&D team includes doctoral and master’s professionals specializing in spiral bevel gear technology, providing strong technical support for complex projects.
• Rigorous testing & high precision: All gears undergo 100% inspection with Gleason metrology systems. We can achieve DIN 6 grade accuracy with strict control over tooth profile and direction errors, keeping our quality at the industry-leading level.
• High transmission efficiency: Our gear designs support a single-stage reduction ratio of up to 300:1, with actual transmission efficiency reaching over 95%, greatly improving energy utilization.
• Excellent durability & cost efficiency: Our gears deliver 40% lower lifecycle cost and a failure rate below 0.5%, ensuring stable long-term operation and reduced maintenance costs.
• Fast response & short lead time: Supported by our digitalized production process, we are able to shorten the delivery cycle to only 20 working days, helping you accelerate project development and launch.
• Professional custom design capability: We provide fully customized gear solutions for applications requiring high-reduction, high-speed, heavy-load, low-noise, and special small-tooth profiles, based on your actual working conditions.
