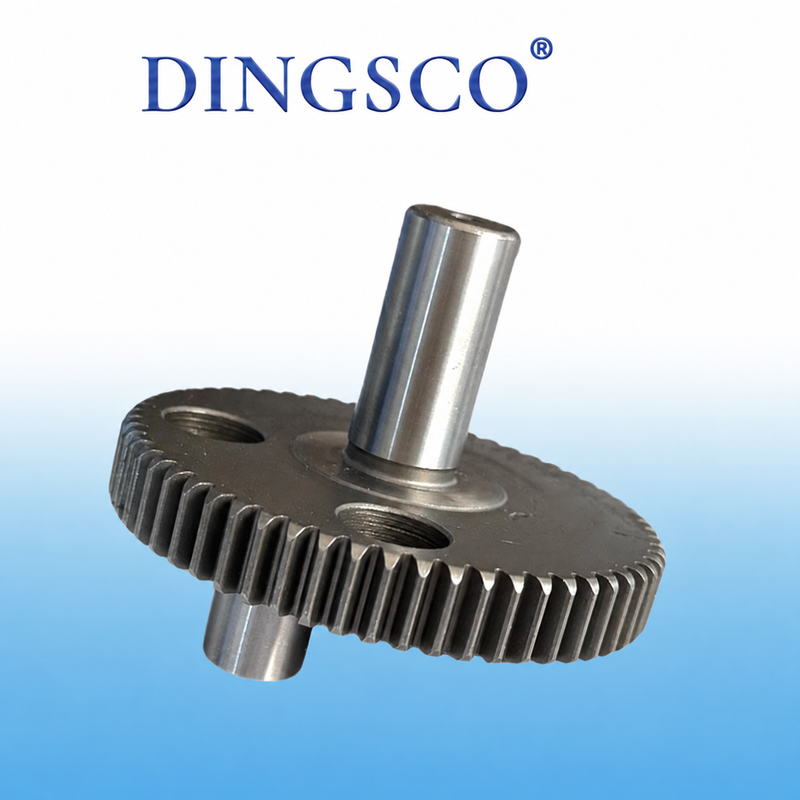

20CrMnTi Precision 10mm Hand Drill Gear for Electric Power Tools

20CrMnTi Precision 10mm Hand Drill Gear

The 10mm Hand Drill Gear is the core transmission component inside electric hand drills. It transfers the motor's rotational power to the output spindle, ensuring smooth and efficient drilling performance. These gears are commonly manufactured from 20CrMnTi, 20MnCr5, 40Cr, SCM415, or SCM420 alloy steel, followed by carburizing, quenching, precision grinding, and heat treatment for excellent hardness, wear resistance, and long service life.

Product Features

• Made of premium 20CrMnTi alloy steel for high strength and toughness.
• Carburized and quenched for high surface hardness and excellent wear resistance.
• Precision CNC machined for accurate tooth profiles and smooth transmission.
• Stable gear meshing with low noise and reduced vibration.
• High load capacity for demanding torque transmission.
• High transmission efficiency with reduced power loss.
• Excellent fatigue resistance for extended service life.

Technical Parameter Table

Main Applications

• Suitable for both brushless and brushed cordless drills, delivering stable torque output.
• Designed for heavy-duty impact applications with reliable power transmission and durability.
• Widely used in manufacturing, assembly lines, and professional construction equipment.
• Ideal for drilling metal, wood, and concrete in construction projects.
• Used in machinery maintenance, electrical installation, and repair operations.
• Suitable for home repairs, furniture assembly, and everyday drilling tasks.
• Used as OEM or replacement gears for maintenance, repair, and equipment upgrades.

Product Advantages

• Precision-machined tooth profiles ensure smooth transmission and low noise.
• Carburized and quenched for high hardness and superior wear resistance.
• High transmission efficiency helps minimize power loss.
• Excellent fatigue resistance provides extended service life.
• High dimensional accuracy ensures easy assembly and excellent interchangeability.
• Reliable performance under continuous and heavy-duty operating conditions.

Production Process

• Alloy Steel Cutting : Select high-quality alloy steel for consistent material performance.
• CNC Turning : Machine the basic dimensions and shaft profile.
• Gear Hobbing : Generate accurate gear tooth profiles.
• Carburizing & Quenching : Increase surface hardness and wear resistance.
• Precision Gear Grinding : Improve transmission accuracy and meshing performance.
• Deburring & Cleaning : Remove burrs and clean the gear surface.
• Quality Inspection : Verify dimensions, hardness, and gear meshing accuracy.
• Anti-rust Packaging : Protect the gear during storage and transportation.

Cautions

• Maintain proper gear backlash during installation.
• Lubricate regularly with suitable grease to ensure smooth operation.
• Avoid overload and prolonged heavy-duty operation.
• Inspect gears regularly for wear, cracks, and abnormal noise.
• Keep the gearbox clean to prevent contamination.
• Avoid impacts on the gear teeth to prevent damage to precision.
• Store in a dry environment with proper anti-rust protection for long-term storage.

Why Choose us?

• 7-axis CNC Grinding: We adopt high-precision 7-axis CNC grinding machines, holding tolerances as tight as ±5μm, ensuring gears run quietly, smoothly and with outstanding durability.
• Strong technical expertise: Our core R&D team includes doctoral and master’s professionals specializing in spiral bevel gear technology, providing strong technical support for complex projects.
• Rigorous testing & high precision: All gears undergo 100% inspection with Gleason metrology systems. We can achieve DIN 6 grade accuracy with strict control over tooth profile and direction errors, keeping our quality at the industry-leading level.
• High transmission efficiency: Our gear designs support a single-stage reduction ratio of up to 300:1, with actual transmission efficiency reaching over 95%, greatly improving energy utilization.
• Excellent durability & cost efficiency: Our gears deliver 40% lower lifecycle cost and a failure rate below 0.5%, ensuring stable long-term operation and reduced maintenance costs.
• Fast response & short lead time: Supported by our digitalized production process, we are able to shorten the delivery cycle to only 20 working days, helping you accelerate project development and launch.
• Professional custom design capability: We provide fully customized gear solutions for applications requiring high-reduction, high-speed, heavy-load, low-noise, and special small-tooth profiles, based on your actual working conditions.
