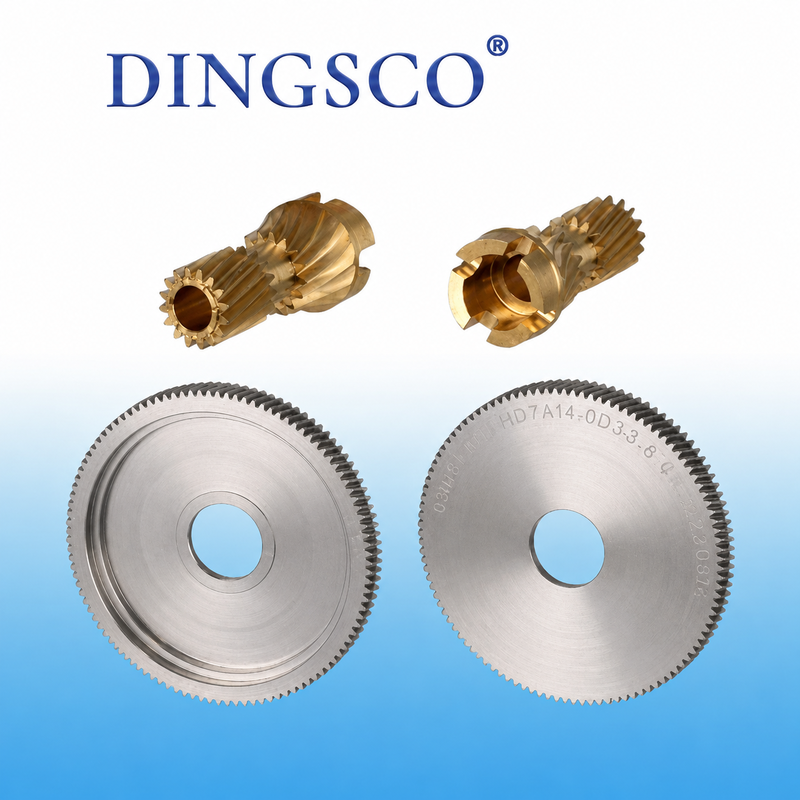

20CrMnTi Fishing Reel Gear

Place of Origin Changsha, China
Brand Name DINGSCO
Certification ISO 9001
Product Details
Gear Type:
Fishing Reel Gear
Material:
20CrMnTi / 40Cr / SUS420 / SUS440C / Brass
Gear Accuracy:
ISO Grade 6–8
Manufacturing Process:
CNC Machining + Gear Hobbing
Surface Hardness:
HRC 58–62
Payment & Shipping Terms
Minimum Order Quantity
Negotiable
Price
Negotiable
Packaging Details
According to customers' requests
Delivery Time
(Sample order) 7 days
Payment Terms
T/T
Supply Ability
Negotiable
Product Description

20CrMnTi Fishing Reel Gear

The 20CrMnTi Fishing Reel Gear is manufactured from premium 20CrMnTi low-carbon alloy steel, offering excellent strength, toughness, and wear resistance. As a key transmission component in fishing reels, it is produced through precision CNC machining, gear hobbing, carburizing, heat treatment, and precision gear grinding to ensure smooth meshing, high transmission efficiency, low operating noise, and long service life.


Product Features

  • Premium 20CrMnTi alloy steel with heat treatment provides excellent wear and fatigue resistance.
  • Precision machining ensures smooth meshing and efficient power transmission.
  • Optimized tooth profiles reduce operating noise and vibration.
  • Capable of handling high torque and impact loads.
  • Hardened tooth surfaces provide extended service life.

Technical Parameter Table


Product Fishing Reel Gear
Material 20CrMnTi / 40Cr / SUS420 / SUS440C / Brass
Manufacturing Process CNC Machining + Gear Hobbing
Heat Treatment Carburizing & Quenching / Induction Hardening
Surface Hardness HRC 58–62
Accuracy Grade ISO Grade 6–8
Tensile Strength ≥ 1080 MPa
Yield Strength ≥ 835 MPa
Operating Temperature -20°C ~ +120°C

Main Applications

  • Widely used in spinning reels to ensure smooth power transmission and efficient line retrieval.
  • Ideal for baitcasting reels, delivering stable transmission and precise control.
  • Excellent wear and corrosion resistance for demanding saltwater fishing applications.
  • Suitable for freshwater reels requiring lightweight, durability, and smooth operation.
  • Designed for premium fishing reels requiring high-speed and high-load performance.

Product Advantages

  • Premium 20CrMnTi alloy steel with heat treatment for superior strength and wear resistance.
  • Precision meshing ensures smooth operation and efficient power transmission.
  • Designed to withstand high torque and impact loads.
  • Optimized tooth profiles reduce noise and vibration.
  • Hardened tooth surfaces provide a longer service life.

Production Process

  • Inspect the chemical composition and mechanical properties of 20CrMnTi steel.
  • Perform precision turning, milling, and drilling operations.
  • Gear hobbing followed by carburizing and quenching improves gear accuracy and hardness.
  • Precision gear grinding, deburring, and surface finishing ensure smooth operation.
  • Inspect dimensions, hardness, and gear accuracy before packaging and shipment.

Cautions

  • Keep the gears properly lubricated.
  • Avoid overload and high-impact operation.
  • Clean after use to remove salt and debris.
  • Inspect gear wear regularly and replace if necessary.
  • Store in a dry environment to prevent corrosion.

Why Choose us?

  • 7-axis CNC Grinding: We adopt high-precision 7-axis CNC grinding machines, holding tolerances as tight as ±5μm, ensuring gears run quietly, smoothly and with outstanding durability.
  • Strong technical expertise: Our core R&D team includes doctoral and master’s professionals specializing in spiral bevel gear technology, providing strong technical support for complex projects.
  • Rigorous testing & high precision: All gears undergo 100% inspection with Gleason metrology systems. We can achieve DIN 6 grade accuracy with strict control over tooth profile and direction errors, keeping our quality at the industry-leading level.
  • High transmission efficiency: Our gear designs support a single-stage reduction ratio of up to 300:1, with actual transmission efficiency reaching over 95%, greatly improving energy utilization.
  • Excellent durability & cost efficiency: Our gears deliver 40% lower lifecycle cost and a failure rate below 0.5%, ensuring stable long-term operation and reduced maintenance costs.
  • Fast response & short lead time: Supported by our digitalized production process, we are able to shorten the delivery cycle to only 20 working days, helping you accelerate project development and launch.
  • Professional custom design capability: We provide fully customized gear solutions for applications requiring high-reduction, high-speed, heavy-load, low-noise, and special small-tooth profiles, based on your actual working conditions.
