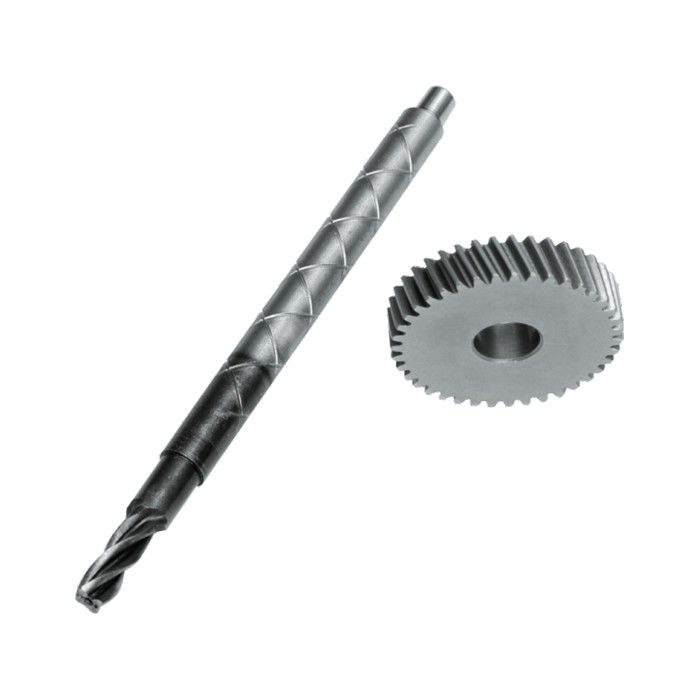

Cylinder Power Tool Gear For 10mm Hand Electric Drill Parts

Power Tool Gear For 10mm Hand Electric Drill

In a Hand Electric Drill, gears play a crucial role in transmitting and controlling the rotational motion generated by the electric motor to the chuck assembly. Their general functions include the following:

• Speed Control: Gears in a hand electric drill enable speed control by changing the gear ratio between the motor and the chuck assembly. By altering the gear ratio, the rotational speed of the chuck can be adjusted to suit different drilling or fastening requirements. A higher gear ratio will result in higher rotational speed, while a lower gear ratio will provide more torque.
• Torque Generation: Gears in the drill gear train allow for torque multiplication. The electric motor typically operates at high speed but relatively low torque. The gears help transfer and amplify the torque from the motor to the chuck assembly, allowing the drill to exert sufficient force for drilling or driving screws.
• Direction Control: Some hand electric drills offer reversible functionality, allowing the user to switch between forward and reverse rotation. Gears with a specific design, such as helical gears or planetary gears, facilitate this direction control by altering the gear engagement and transferring motion in the desired direction.
• Power Transmission: The gears in a hand electric drill transmit the power generated by the electric motor to the chuck assembly. They ensure that the rotational motion is efficiently transferred from the motor to the drill bit or other tool attachments, allowing for effective drilling or fastening operations.
• Mechanical Stability: Gears provide stability and support to the overall drill mechanism. They help maintain proper alignment and reduce vibration during operation, enhancing the precision and effectiveness of drilling or fastening tasks.

Hand electric drills, also known as power drills or corded drills, typically employ a gear system to transmit and control the rotational motion generated by the electric motor. The gear system in a hand electric drill serves several important functions, including speed control and torque multiplication. Here are the key gears commonly found in hand electric drills:

• Motor Gear: The electric motor in a hand electric drill is connected to a small gear, often referred to as the motor gear or pinion gear. This gear is directly driven by the motor shaft and serves to transmit the motor's rotational motion to the rest of the gear train.
• Spur Gears: Hand electric drills commonly use spur gears in their gear train. Spur gears have straight teeth that are parallel to the gear axis. These gears help transmit torque and rotational motion from the motor gear to the chuck assembly.
• Intermediate Gears: In some hand drills, there may be one or more intermediate gears in the gear train. These gears are used to change the direction of rotation or to adjust the speed and torque output of the drill. They are often positioned between the motor gear and the final output gear.
• Output Gear: The output gear is connected to the chuck assembly of the drill. It is responsible for transferring the rotational motion and torque to the drill bit or other tool attachments. The size and number of teeth on the output gear can affect the speed and torque characteristics of the drill.
• Speed Control: Hand electric drills often feature variable speed controls to adjust the rotational speed of the drill bit. This is typically achieved through a mechanism that changes the engagement between the motor gear and the intermediate or output gears. By adjusting the gear engagement, the speed of the output gear and the chuck assembly can be varied.
