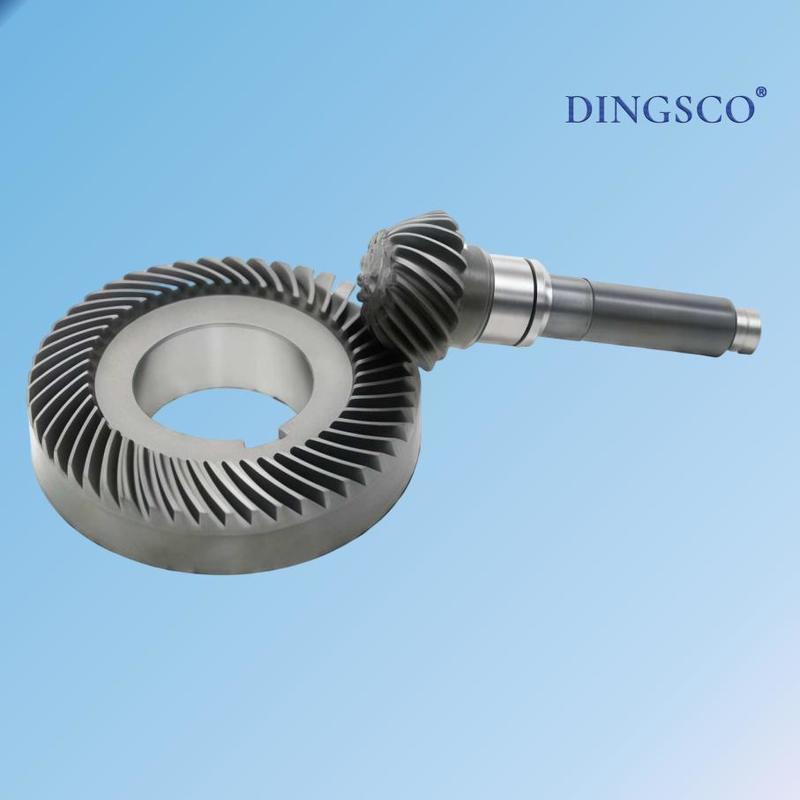

Micro Reducer 100 Angle Gear – Precision Right-Angle Gear Transmission
The "Micro Reducer 100 Angle Gear" is a precision transmission component commonly used in small mechanical equipment, automation devices and robotics. This compact and efficient transmission component is designed to change the direction of motion by 90° and reduce speed to increase torque. High-precision bevel gears and a lightweight housing ensure smooth operation, low noise, and reliable performance.
Micro Reducer 100 Angle Gear Structural Features
Right-Angle Drive Design: Utilizes bevel or bevel gears to achieve 90° directional changes.
High-Precision Gears: Typically utilize ground or precision-machined gears to ensure smooth operation and low noise.
Compact Size: The overall structure is small, making it suitable for installation in confined spaces.
Multiple Speed Ratios: In addition to 100 rpm, higher or lower output speeds can be designed as needed.
High-Quality Materials: Gears are typically made of carburized and quenched alloy steel, while the housing is typically made of aluminum alloy or steel for wear resistance and durability.
Technical Parameters
| Micro Reducer 100 Angle Gear – Precision Right-Angle Gear Transmission |
| Output Speed (rpm) |
100 rpm |
| Transmission Type |
Bevel gear |
| Gear Ratio Range |
1:5 ~ 1:100 |
| Rated Torque |
1 Nm ~ 50 Nm |
| Noise Level |
≤ 60 dB |
| Material |
Alloy steel gears |
| Mounting Type |
Flange mounting / Foot mounting / Customized mounting holes |
| Applications |
Automation equipment, robotics, conveyor systems, etc. |
