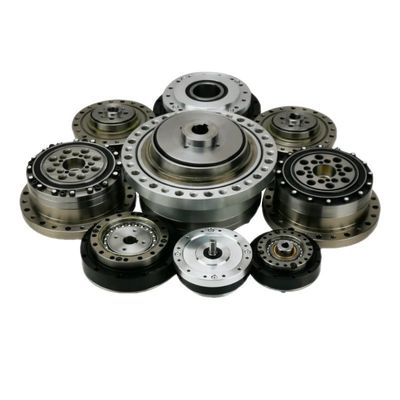

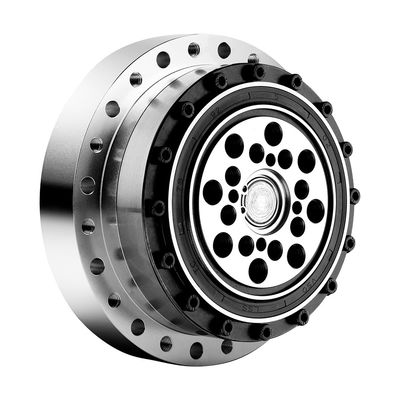

Industrial Robot Harmonic Drive Gear Strain Wave Gear Zero Backlash For Precision Motion Control

The harmonic drive gear, also known as a strain wave gear, is a type of gear mechanism used in industrial robots for precision motion control, compact design, and high gear reduction ratios. Here's an overview of the harmonic drive gear and its applications in industrial robots:

• Principle of Operation: A harmonic drive gear consists of three main components: a circular spline, a flexspline, and a wave generator. The flexspline, which has internal teeth, is preloaded against the circular spline, which has external teeth. The wave generator is connected to the input shaft and deforms the flexspline, causing it to engage with the circular spline. This deformation creates a wave-like motion that transfers torque from the input to the output.
• High Gear Reduction Ratio: Harmonic drive gears provide high gear reduction ratios in a compact design. The reduction ratio is determined by the number of teeth on the flexspline and the circular spline. This makes them suitable for applications in industrial robots that require high torque output and precise motion control.
• Zero Backlash: Harmonic drive gears are known for their zero-backlash operation. The preloading of the flexspline against the circular spline ensures direct and immediate response to input motion without any clearance or backlash. This characteristic is crucial for applications that demand accurate positioning and repeatability.
• High Precision and Repeatability: The zero-backlash nature of harmonic drive gears allows for precise and repeatable motion control. This makes them suitable for tasks such as pick-and-place operations, assembly, and other high-precision applications in industrial robots.
• Compact Design: Harmonic drive gears offer a compact and lightweight design compared to other gear systems with similar gear reduction ratios. This compactness is valuable in industrial robots where space and weight constraints are critical considerations.
• High Torque Transmission: Harmonic drive gears can transmit high torque due to the large contact area between the flexspline and the circular spline. This makes them suitable for applications in industrial robots that require high force output and torque transmission, such as lifting heavy loads or exerting significant pressure.
• Smooth Operation: Harmonic drive gears provide smooth and continuous motion due to the wave-like engagement between the flexspline and the circular spline. This smooth operation minimizes vibration and noise, enhancing the overall performance of the robot.
