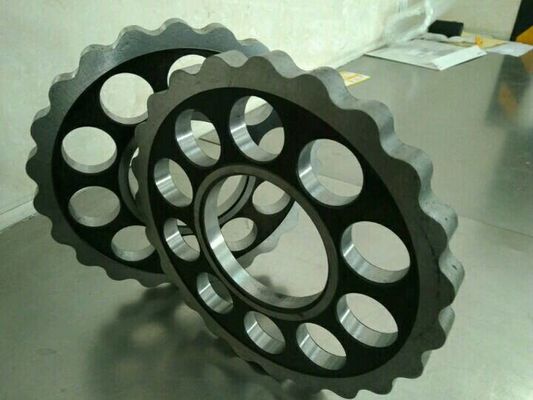

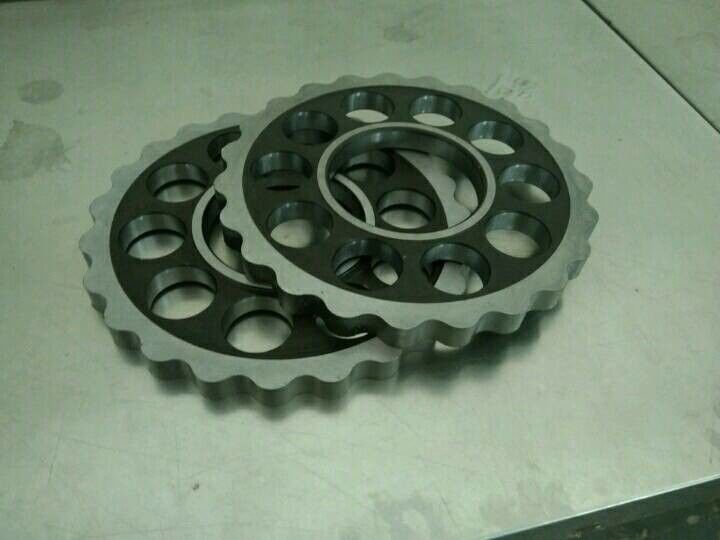

Industrial Robot Gear Cycloidal Gear Variable Speed Cyclo Gear Reduction

Industrial Robot Cycloidal Gear Variable Speed Cyclo Gear For Industrial Robot Applications

Cycloidal gears, also known as cycloidal drives or cycloidal speed reducers, are a type of gear mechanism used in industrial robots for precise motion control, compact design, high torque transmission, and low backlash. Here's an overview of cycloidal gears and their applications in industrial robots:

• Principle of Operation: Cycloidal gears utilize the principle of a cam mechanism to achieve gear reduction. The gear system consists of a high-speed input shaft, an eccentric cam with lobes, and output pins that engage with the lobes of the cam. As the input shaft rotates, the eccentric cam imparts a complex oscillating motion to the output pins, resulting in the desired gear reduction and torque transmission.
• High Gear Reduction Ratio: Cycloidal gears offer high gear reduction ratios in a compact design. The number of lobes on the eccentric cam and the number of output pins determine the gear reduction ratio. This makes them suitable for industrial robot applications that require high torque output and precise motion control.
• Low Backlash: Cycloidal gears are known for their low backlash operation. The engagement between the output pins and the lobes of the eccentric cam is continuous, resulting in minimal play or clearance. This low backlash characteristic is crucial for applications that demand accurate positioning and repeatability.
• Compact Design: Cycloidal gears provide a compact and lightweight design compared to other gear systems with similar gear reduction ratios. This compactness is valuable in industrial robots where space and weight constraints are critical considerations.
• High Torque Transmission: Cycloidal gears can transmit high torque due to the multiple points of contact between the output pins and the lobes of the eccentric cam. This makes them suitable for applications in industrial robots that require high force output and torque transmission, such as lifting heavy loads or exerting significant pressure.
• Smooth Operation: Cycloidal gears offer smooth and continuous motion due to the cam-like engagement between the output pins and the eccentric cam. This smooth operation minimizes vibration and noise, enhancing the overall performance of the robot.
• High Overload Capacity: Cycloidal gears have a high overload capacity, allowing them to handle sudden spikes in torque or shock loads. This feature is beneficial in industrial robot applications where abrupt changes in load or external forces can occur.
