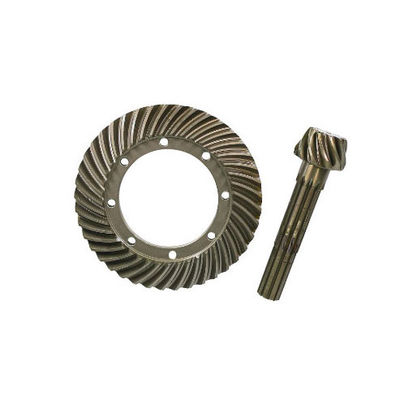

Small Steel Hypoid Gear Miniature Transmission Aerospace Pinion

Small Steel Hypoid Gear Miniature Transmission Aerospace Pinion

Small steel hypoid gears combine the high strength, wear resistance and good heat treatment properties of steel materials with the compact design and lightweight characteristics of small-module gears, thereby ensuring transmission performance and improving system reliability. Overall efficiency and economic benefits form a transmission solution suitable for a variety of harsh application environments:


• High strength and compact design: While maintaining high strength and load-bearing capacity, steel small-module gears make the transmission system more compact through compact design, which is suitable for space-limited occasions, such as aerospace, precision machinery, etc.
• Wear resistance and lightweight: The wear resistance of steel materials ensures the service life of gears under high-speed and heavy-load conditions, while the lightweight design of small-module gears reduces inertia and improves transmission efficiency and response speed.
• Heat treatment performance and high precision: Steel gears can adjust their mechanical properties through a variety of heat treatment processes to meet different application requirements. The high-precision machining requirements of small-module gears combined with the heat treatment properties of steel materials ensure the dimensional accuracy and transmission stability of the gears.
• Environmental adaptability and cost-effectiveness: Steel gears are able to withstand a variety of environmental conditions, including high and low temperatures and corrosive environments. The design of small-module gears optimizes material use, reduces production costs, and improves cost-effectiveness.
• Vibration reduction, noise reduction and reliability: Lightweight small-module gears help reduce vibration and noise, improving the smooth operation of the equipment. The reliability of steel materials allows gears to maintain stable performance under complex and harsh working conditions.
• Processing flexibility and convenient maintenance: The processing flexibility of small module gears makes the design more diverse, while the processing performance of steel materials makes the production of gears more efficient. At the same time, lightweight gears are more convenient for maintenance and replacement.
• Comprehensive performance improvement: Gears that combine steel materials and small module designs achieve optimization of weight and volume while maintaining high performance of the transmission system, providing users with more efficient, reliable and economical transmission solutions.

  ---

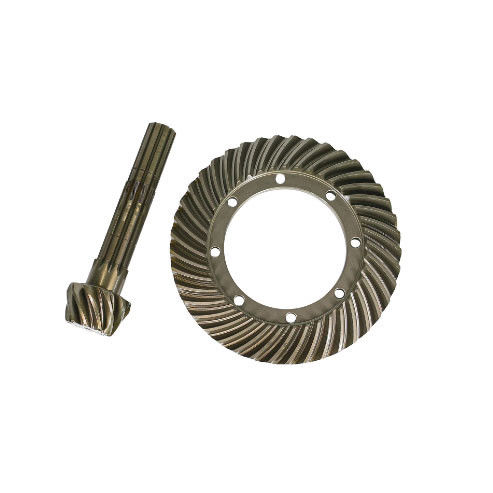

  Small Steel Hypoid Gear Miniature Transmission Aerospace Pinion

  Product Name	Small Steel Hypoid Gear
  Material	Steel
  Gear Type	Hypoid Gear
  Teeth Accuracy Grade	ISO 7-6 Grade
  Heat Treatment	Carburization and quenching......
  Hardness	Hardened: HRC59-62; HRC35-46
  Profile angle	20°
  Service	Customized

  ---

  Who we are?

  We're the production R&D base specializing in professional design, reserch, manufacture and sales of high-quality small module spiral bevel gears and high reduction hypoid gears and cylindrical gears.



  We have strong scientific research and development capabilities and is also equipped a full set of advanced equipment including seven-axis five-linkage CNC spiral bevel gear grinding machines and gear milling machines. By making the best use of the scientific and technological achievements and equipment of the Gear Research Institute of Central South University, machanical processing, heat treatment and testing. We have developed high-quality products featuring high reduction, high speed, heavy load, low noise and less teeth for users.

  ---

  Welcome to Customized: Non-standard customization of Dinghan gears

  1.Our company has a complete set of software to realize digital closed-loop manufacturing of spiral bevel gears, Functions such as gear design, strength calculation, contact analysis, tool calculation, tooth profile error reversal, etc. can be realized.



  2.Machining methods include five tools machining(fixed setting) & G-plete of tapper , spiral format tilt(SFT) method & hypoid format tilt (HFT) method of Cycloid equidep, etc.

​
