Small Spiral Angular Bevel Gear CNC Machining Transmission Wheel Hypoid Pinion

Small Spiral Angular Bevel Gear CNC Machining Transmission Wheel Hypoid Pinion

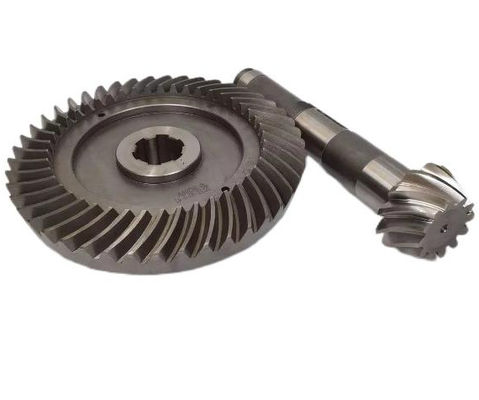

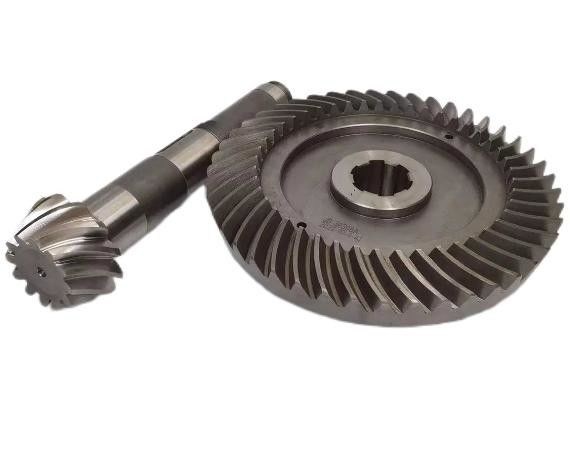

Small spiral bevel gears are mechanical transmission elements that combine the design features of spiral gears and bevel gears. Here is a brief description:

• Structural features: The tooth surface of this gear is spiral, which is different from the parallel tooth lines of spur gears. The tooth profile of the spiral bevel gear is tapered along the tooth width direction, and the tooth spacing gradually decreases from the large end to the small end.
• Transmission mode: Spiral bevel gears can realize power transmission between intersecting or staggered shafts. Due to its spiral tooth design, the transmission process is smoother and the noise is lower.
• Mesh characteristics: When the spiral bevel gear meshes, multiple teeth participate in the mesh at the same time, which increases the load-bearing capacity of the gear and makes the transmission smoother.
• Manufacturing difficulty: Compared with spur gears, the manufacturing process of spiral bevel gears is more complex and requires precise processing technology and equipment.
• Application fields: Due to its compact structure and high transmission efficiency, small spiral bevel gears are often used in aviation, precision instruments, automobiles and other mechanical equipment that require smooth transmission and limited space.
• Maintenance requirements: Due to the complexity of its structure, small spiral bevel gears have high requirements for lubrication and cleaning to ensure their normal operation and extend their service life.

The design and application of this gear fully embodies the pursuit of efficiency, precision and reliability in modern mechanical design.

Small Spiral Angular Bevel Gear CNC Machining Transmission Wheel Hypoid Pinion

Who we are?

We're the production R&D base specializing in professional design, reserch, manufacture and sales of high-quality small module spiral bevel gears and high reduction hypoid gears and cylindrical gears.

We have strong scientific research and development capabilities and is also equipped a full set of advanced equipment including seven-axis five-linkage CNC spiral bevel gear grinding machines and gear milling machines. By making the best use of the scientific and technological achievements and equipment of the Gear Research Institute of Central South University, machanical processing, heat treatment and testing. We have developed high-quality products featuring high reduction, high speed, heavy load, low noise and less teeth for users.

Welcome to Customized: Non-standard customization of Dinghan gears

1.Our company has a complete set of software to realize digital closed-loop manufacturing of spiral bevel gears, Functions such as gear design, strength calculation, contact analysis, tool calculation, tooth profile error reversal, etc. can be realized.

2.Machining methods include five tools machining(fixed setting) & G-plete of tapper , spiral format tilt(SFT) method & hypoid format tilt (HFT) method of Cycloid equidep, etc.
