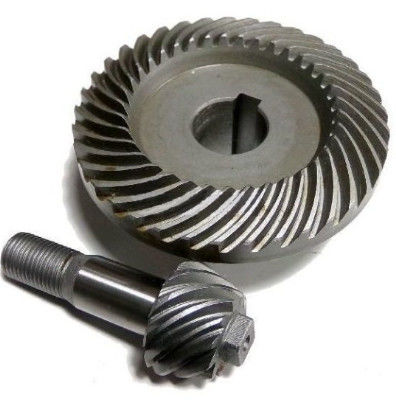

High-Ratio Hypoid Gear Pair Involute Bevel Gear Worm Wheel Pinion

High-Ratio Hypoid Gear Pair Involute Bevel Gear Worm Wheel Pinion

Involute bevel gears are a commonly used gear type in auxiliary drive systems. Their main features include:

• Involute tooth shape ensures smooth, quiet gear operation with reduced vibration.
• High load capacity allows for greater torque and is suitable for high-power, high-speed use.
• Even contact distribution on involute gears improves wear resistance and longevity.
• Cone-shaped design offers flexible installation options for various spatial configurations.
• Precision manufacturing ensures a precise fit and efficient gear performance.

  ---

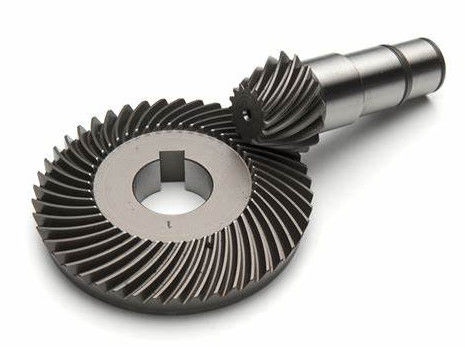

  High-Ratio Hypoid Gear Pair Involute Bevel Gear Worm Wheel Pinion

DINGSCO

WELCOME TO CUSTOMIZED: Non-standard customization of Dinghan gears

1.Our company has a complete set of software to realize digital closed-loop manufacturing of spiral bevel gears, Functions such as gear design, strength calculation, contact analysis, tool calculation, tooth profile error reversal, etc. can be realized.

2.Machining methods include five tools machining(fixed setting) & G-plete of tapper , spiral format tilt(SFT) method & hypoid format tilt (HFT) method of Cycloid equidep, etc.
