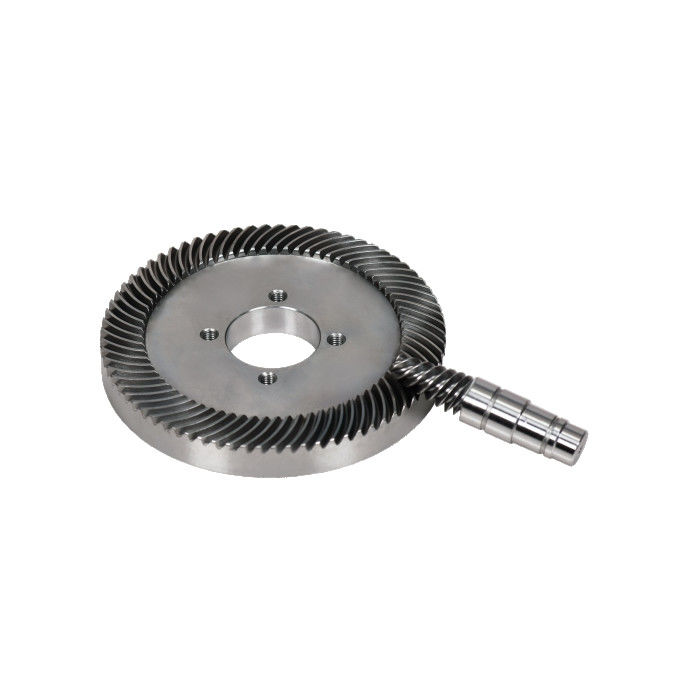

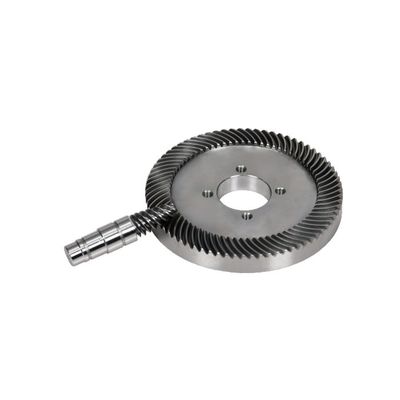

16-18 Teeth Hypoid Gear High Transmission Ratio Curve Grinding Gear

16-18 Teeth Hypoid Gear High Transmission Ratio Curve Grinding Gear

The hypoid large and small gears are eccentrically processed, similar to spiral gears, and the meshing principle is very complex. The hypoid gear counter axis has an offset distance, which makes the transmission design arrangement more flexible and also improves the strength of the small wheel. The small wheel of the hypoid gear pair has a larger helix angle, which enables a greater degree of coincidence when meshing, and the transmission is smoother.

16-18 Teeth Hypoid Gear High Transmission Ratio Curve Grinding Gear

DINGSCO

WELCOME TO CUSTOMIZED: Non-standard customization of Dinghan gears

1.Our company has a complete set of software to realize digital closed-loop manufacturing of spiral bevel gears, Functions such as gear design, strength calculation, contact analysis, tool calculation, tooth profile error reversal, etc. can be realized.

2.Machining methods include five tools machining(fixed setting) & G-plete of tapper , spiral format tilt(SFT) method & hypoid format tilt (HFT) method of Cycloid equidep, etc.
