Orthogonal Grinding Gears with Extra-Long Integral Shaft (DINGSCO®)

Orthogonal Grinding Gears with Extra-Long Integral Shaft (DINGSCO®)

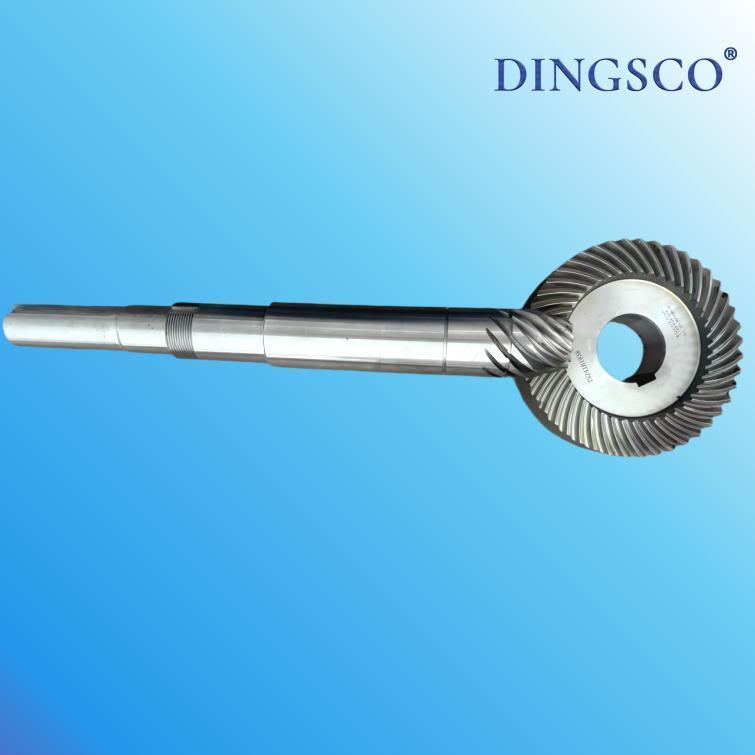

DINGSCO’s orthogonal grinding gears (paired with extra-long integral shafts) are high-precision power transmission components, manufactured via advanced orthogonal grinding processes to meet ISO 1745:2006-6 standards. Designed for demanding industrial systems, this gear-shaft assembly combines exceptional durability, low-noise operation, and efficient power transfer.

Key Technical Features

1. Orthogonal Gear Design

• 90° intersecting shaft arrangement for compact and efficient power transfer.

• Ensures smooth torque output with reduced vibration.

• Suitable for complex reducer structures where space is limited.

2. Gear Grinding Precision

• Manufactured with gear grinding technology to achieve high tooth surface accuracy.

• Reduces noise and backlash, ensuring stable performance even under continuous load.

• Tooth profile and surface roughness are optimized for longer operational life.

3. Extra-Long Integrated Shaft

• One-piece shaft structure eliminates connection joints, improving rigidity and strength.

• Reduces assembly errors and misalignment risks.

• Provides better load distribution across bearings and gear teeth.

4. Material & Heat Treatment

• High-quality alloy steel (e.g., 20CrMnTi, SCM415) with carburizing and quenching process.

• Surface hardness up to 58–62 HRC, ensuring excellent wear resistance.

• Core toughness maintained for impact resistance and long fatigue life.
