CNC Grinded Pinion OEM Spiral Helical Bevel Gear For Machine Tool

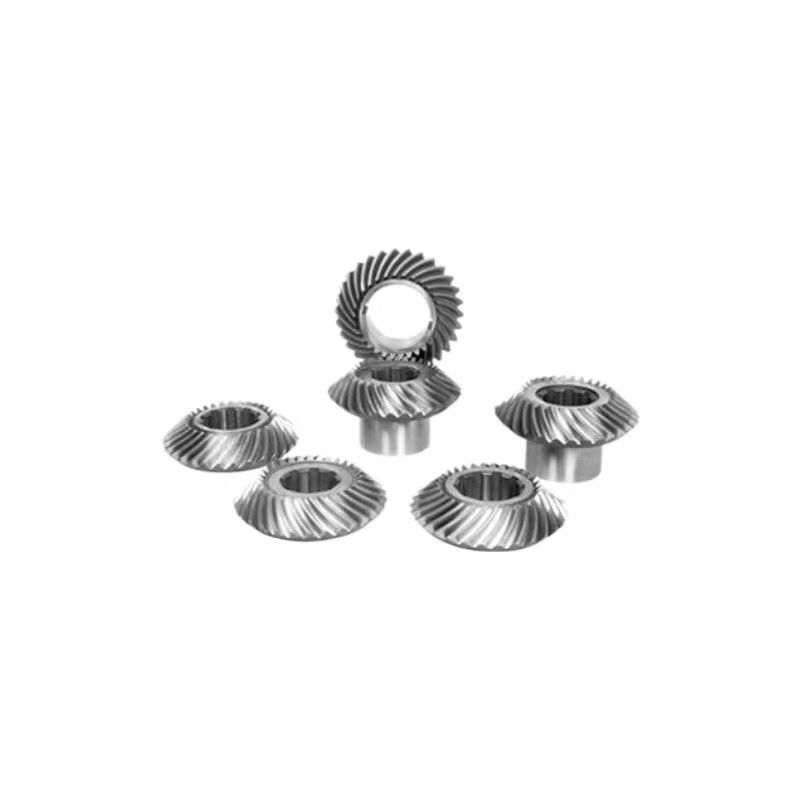

Large Image : CNC Grinded Pinion OEM Spiral Helical Bevel Gear For Machine Tool

Product Details:

Place of Origin:	Changsha, China
Brand Name:	Dingsco
Certification:	ISO9001

Payment & Shipping Terms:

Minimum Order Quantity:	Negotiable
Price:	Negotiable
Packaging Details:	Wooden Case
Delivery Time:	About 30 days
Payment Terms:	T/T
Supply Ability:	Negotiable

Contact Now

CNC Grinded Pinion OEM Spiral Helical Bevel Gear For Machine Tool

Description

Material:	Steel	Shape:	Bevel
Color:	Shiny	Accuracy:	ISO5-6
Customized:	Yes	Surface:	Case Hardened
Highlight:	OEM Spiral Helical Bevel Gear , CNC Grinded Spiral Helical Bevel Gear , Machine Tool Spiral Helical Bevel Gear

Characteristic

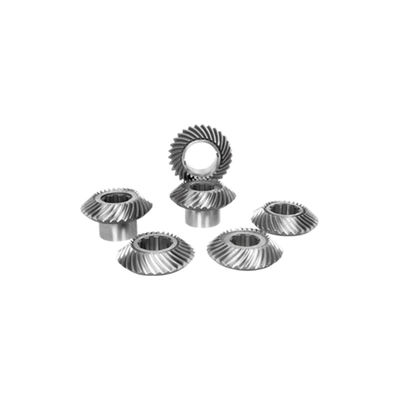

CNC Grinded Pinion OEM Spiral Helical Bevel Gear For Machine Tool 0

Specification

Material	20CrMnTi,18CrNiMo7-6, 20MnCr5 etc
Shape	Bevel
Hardness	Hardened
Surface	Bright
Pressure Angle	20°, also can be customized
Accuracy Grade	ISO 6-7 Grade
Gear Wheel Diameter Range	20-1250mm
Heat Treatment	Carburizing, quenching, carbonitriding, high-frequency, quenching, tempering etc.
Processing	Forging, hobbing, shaping, shaving, grinding etc
Application	Machine tool

Mainly engaged in the design, processing and sales of high-precision, high-strength,

small-module spiral bevel gears, high-reduction ratio hypoid gears, and cylindrical gears.

Processing Features:

1. DH precision manufacturing: Spiral bevel gears require precision manufacturing processes due to their complex tooth geometry. Gear teeth are typically produced using specialized cutting tools,The accuracy of the cutting process directly affects the performance and durability of the gear. We have multiple CNC 7-axis 5-linkage spiral bevel gear grinding machines and gear milling machines, which can process high-reduction ratio hypoid gears and end-face arc tooth couplings.

2. Gear grinding: After the initial cutting process, spiral bevel gears often need to be ground. Grinding helps improve gear tooth surface finish, accuracy, and tooth-to-tooth contact. Ensure correct gear meshing to reduce noise and vibration during operation.

3. Heat treatment: Heat treatment is an essential step in processing spiral bevel gears. It involves heating the gear to a specific temperature and then quenching it to achieve the required hardness and strength. Heat treatment helps improve gear durability and wear resistance.

4. Inspection and Quality Control: Due to the critical nature of spiral bevel gears, strict inspection and quality control procedures are adopted during their manufacturing process. In order to ensure the dimensional accuracy and tooth profile consistency of the gears, we use various measurement methods, such as three-dimensional coordinate measuring machines (CMM), and we use the high-precision gear measurement center to complete the gear pitch accuracy detection, tooth profile error detection and reverse correction of tooth profile errors.

Tag:

Contact Person: Ms. Julia Wang

Tel: 0086-19707319542
